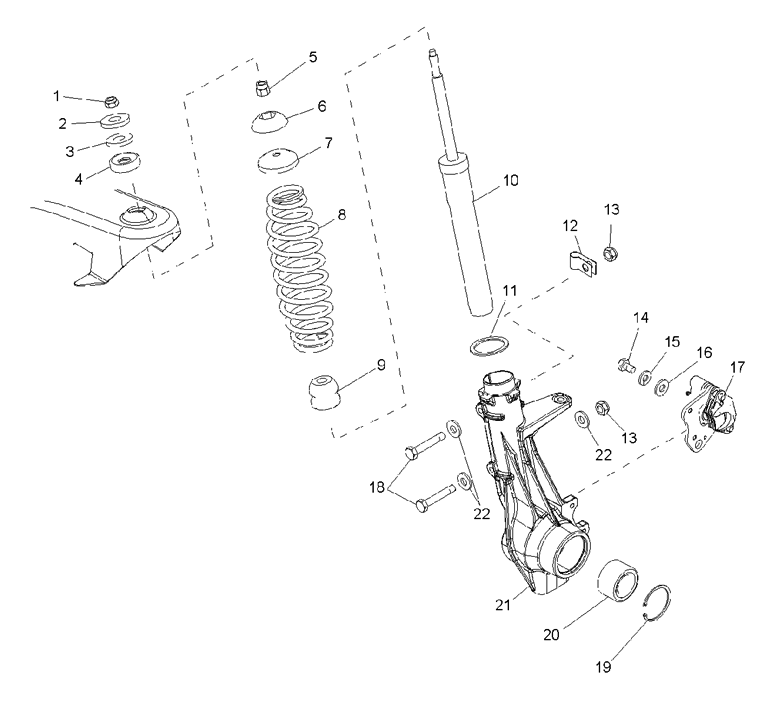

SUSPENSION - FRONT STRUT для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT,BALL,TOPPIVOT,BALL,TOP
-
55132062 SPACER-1/2-20SPACER-1/2-20
-
65432871 PIVOT,BALL,BOTTOMPIVOT,BALL,BOTTOM
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87043094-067 SPRING-COMP,128#/IN,13.85, BLACKSPRING-COMP,128#/IN,13.85, BLACK
-
95412665 BUMPER-MCU,17.8MM IDBUMPER-MCU,17.8MM ID
-
107043106 STRUT-FRONT,18X30MM,184.7MMSTRUT-FRONT,18X30MM,184.7MM
-
115211115 WASHERWASHER
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUT,NYLOKNUT,NYLOK
-
147512457 BOLTBOLT
-
157552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
167556188 WASHER-FL.390X.750X.065-YWASHER-FL.390X.750X.065-Y
-
187515339 BOLTBOLT
-
197710507 RING,RET.,2.500 INTERNALRING,RET.,2.500 INTERNAL
-
203514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
211823299 ASM-HUBSTRUT, LEFT HANDASM-HUBSTRUT, LEFT HAND
-
211823300 ASM-HUBSTRUT, RIGHT HANDASM-HUBSTRUT, RIGHT HAND
-
227558402 WASHER,FLATWASHER,FLAT
