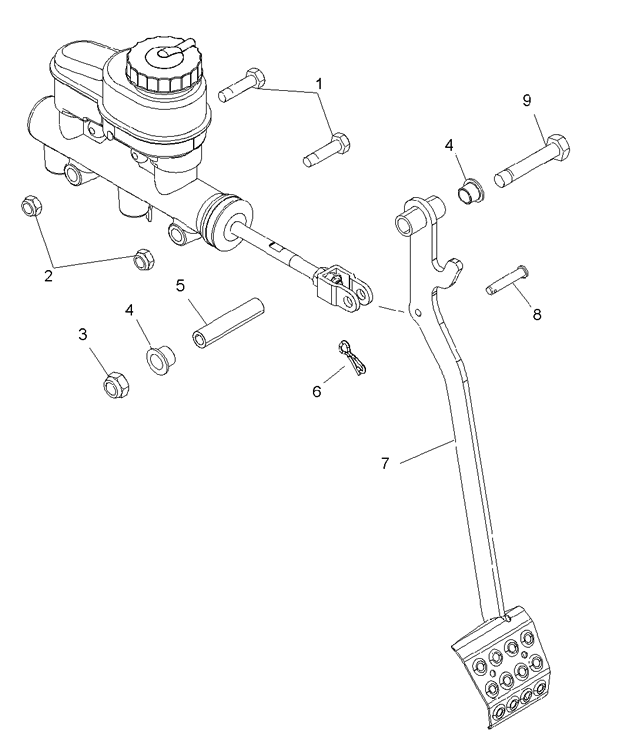

BRAKES PEDAL AND MASTER CYLINDER MOUNTING для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
17515319 BOLTBOLT
-
27542324 NUT,NYLOKNUT,NYLOK
-
37542439 NUT,NYLOKNUT,NYLOK
-
45433189 BUSHING-PEDAL PIVOTBUSHING-PEDAL PIVOT
-
55334030 TUBE-BRAKE PEDAL BUSHINGTUBE-BRAKE PEDAL BUSHING
-
67661140 PIN-CLIP,14MMPIN-CLIP,14MM
-
71016064 WELD-BRAKE PEDAL, BLACKWELD-BRAKE PEDAL, BLACK
-
87661843 PIN-CLEVIS, 1/4 X 3/4 -YPIN-CLEVIS, 1/4 X 3/4 -Y
-
97515417 SCREWSCREW
