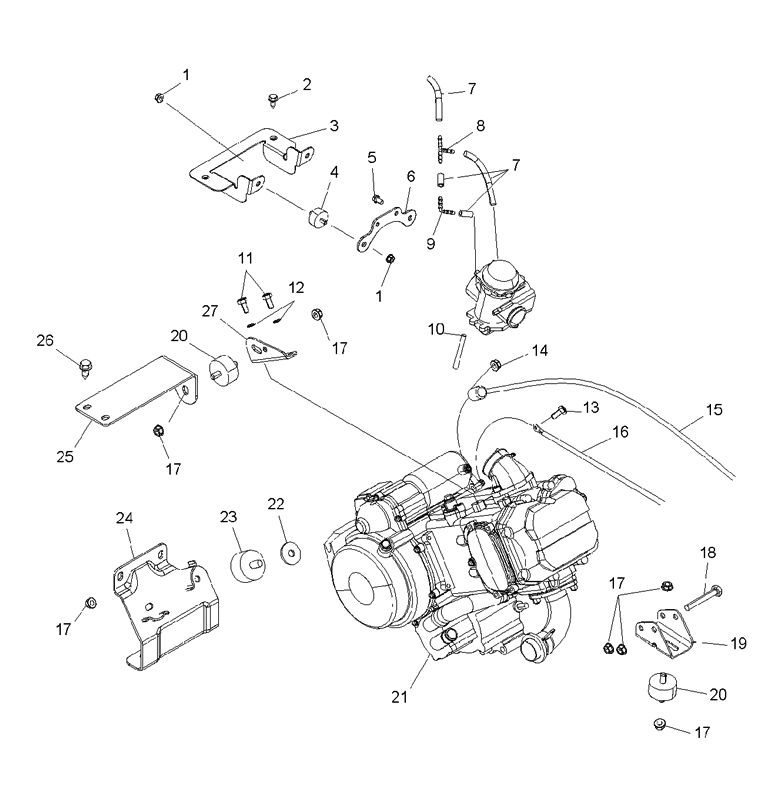

MOUNTING для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7542153 NUT,NYLOK,FLANGED
    NUT,NYLOK,FLANGED
  • 2
    7517386 SCREW
    SCREW
  • 3
    5249750 BRKT-CARB
    BRKT-CARB
  • 4
    3021398 MOUNT-RUBBER,ISOLATOR
    MOUNT-RUBBER,ISOLATOR
  • 5
    3084205 ASM.,SCREW AND WASHER
    ASM.,SCREW AND WASHER
  • 6
    5245206 BRKT-CARB DAMPNER,CARB SIDE
    BRKT-CARB DAMPNER,CARB SIDE
  • 7
    8450003-1525 LINE,FUEL,1/4 ID(1525 CM.)
    LINE,FUEL,1/4 ID(1525 CM.)
  • 8
    7052075 FITTING, TEE
    FITTING, TEE
  • 9
    7052385 FITTING-90° 1/4X1/4 BARBED
    FITTING-90° 1/4X1/4 BARBED
  • 10
    8360009-600 LINE,FUEL,1/8 ID,600 CM.
    LINE,FUEL,1/8 ID,600 CM.
  • 11
    7512315 BOLT
    BOLT
  • 12
    7552901 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 13
    3082038 BOLTANDWASHER ASM.
    BOLTANDWASHER ASM.
  • 14
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 15
    4011249 CABLE-SOL/STARTER
    CABLE-SOL/STARTER
  • 16
    4011214 CABLE-GROUND,78''/10''
    CABLE-GROUND,78''/10''
  • 17
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 18
    7515417 SCREW
    SCREW
  • 19
    5248195 BRKT-ENGINE,MNT,LWR,FRONT
    BRKT-ENGINE,MNT,LWR,FRONT
  • 20
    3021936 ISOLATOR-3/8-24M/M,60DURO
    ISOLATOR-3/8-24M/M,60DURO
  • 21
    3089515 SHORT BLOCK EH500PLE165
    SHORT BLOCK EH500PLE165
  • 22
    7555823 WASHER
    WASHER
  • 23
    3021935 MOUNT-RUBBER,REAR,60 DURO
    MOUNT-RUBBER,REAR,60 DURO
  • 24
    1015065-067 ENG/TRANS MNT, BLACK
    ENG/TRANS MNT, BLACK
  • 25
    5248196 BRKT-ENGINE MNT,TOP,500
    BRKT-ENGINE MNT,TOP,500
  • 26
    7515399 SCREW
    SCREW
  • 27
    5241453 MOUNT-ENGINE,TOP PLTD
    MOUNT-ENGINE,TOP PLTD
