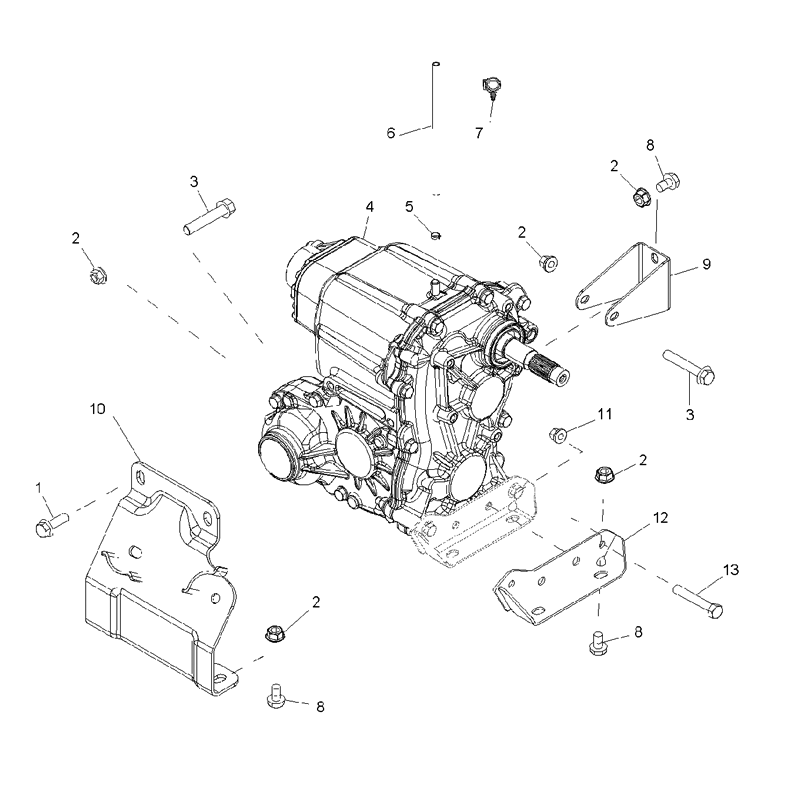

MAIN GEARCASE - MOUNTING для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
17517632 SCREWSCREW
-
27547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
37518415 BOLT-3/8-24X23/4,HEX FLANGE,65BOLT-3/8-24X23/4,HEX FLANGE,65
-
41332357 ASM-GEARCASE,MAIN,2X4ASM-GEARCASE,MAIN,2X4
-
57080307 CLAMP,HOSECLAMP,HOSE
-
68450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
74020139 CLIP,ROSEBUDCLIP,ROSEBUD
-
87517289 SCREWSCREW
-
95248198 BRKT-TRANNY MNT,REARBRKT-TRANNY MNT,REAR
-
101015065-067 ENG/TRANS MNT, BLACKENG/TRANS MNT, BLACK
-
113234043 NUTNUT
-
123234044 BRACKETBRACKET
-
133234042 SCREWSCREW
