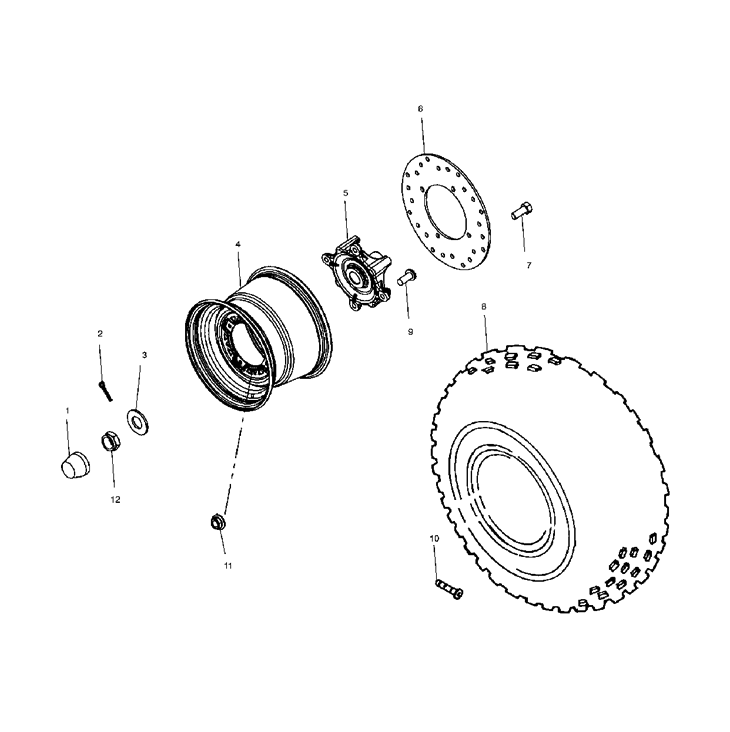

WHEEL - REAR для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
15411164 HUB DUST COVERHUB DUST COVER
-
27661404 PIN, COTTERPIN, COTTER
-
37555796 WASHER, CONEWASHER, CONE
-
41520483-067 RIM, 12X8, 10GA (REAR) (BLACK)RIM, 12X8, 10GA (REAR) (BLACK)
-
55132520 HUB-REAR WHEEL, MACHHUB-REAR WHEEL, MACH
-
65244635 DISC, BRAKE, REAR, 8.625X.158DISC, BRAKE, REAR, 8.625X.158
-
77512325 BOLTBOLT
-
85412008 TIRE-REAR, 25X11-12, 489TIRE-REAR, 25X11-12, 489
-
97515513 STUDSTUD
-
101525017 VALVE, RIMVALVE, RIM
-
117542459 NUT, FLANGEDNUT, FLANGED
-
127543005 NUT, CASTLENUT, CASTLE
