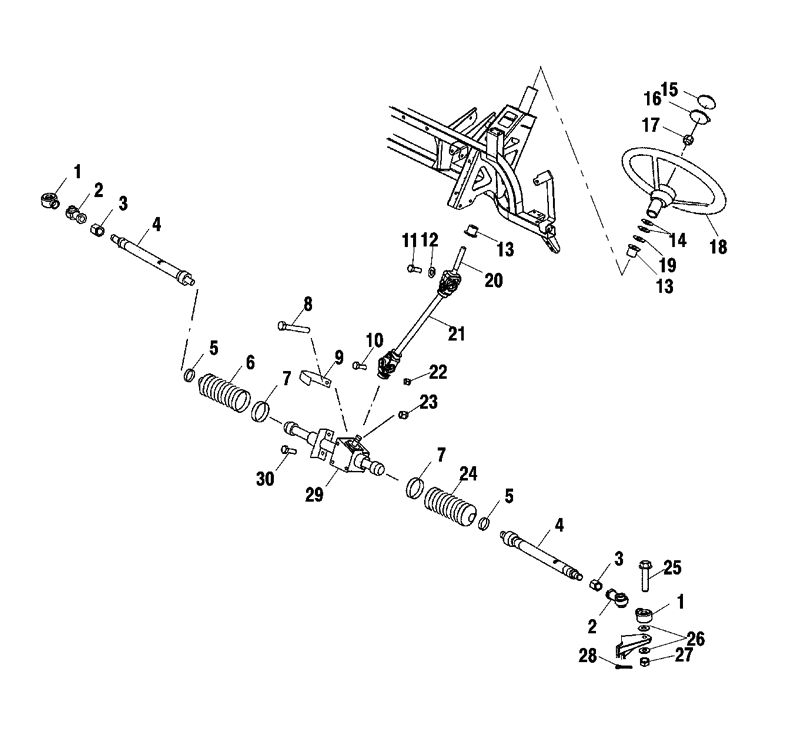

STEERING POST для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
15411920 BOOT, SEAL ROD END (10 MM)BOOT, SEAL ROD END (10 MM)
-
27061054 ROD END 10MM, 1/2-20LH, 42 DEGROD END 10MM, 1/2-20LH, 42 DEG
-
37547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
41821006 GEARCASE BOX ASSY, STEERINGGEARCASE BOX ASSY, STEERING
-
57080978 CLAMP-BOOT, SMALLCLAMP-BOOT, SMALL
-
65412013 BOOT-PASSENGER, SIDE RACKBOOT-PASSENGER, SIDE RACK
-
77080979 CLAMP-BOOT, LARGECLAMP-BOOT, LARGE
-
87515382 BOLTBOLT
-
97080884 CLIP, JCLIP, J
-
107515434 SCREWSCREW
-
117517924 BOLT-CAP M8X1.25BOLT-CAP M8X1.25
-
127552902 WASHERWASHER
-
135434106 BUSHING-STEERING SHAFTBUSHING-STEERING SHAFT
-
147556063 WASHER, WAVEWASHER, WAVE
-
157078465 LOGO-POLARIS STARLOGO-POLARIS STAR
-
165434169 CAP-STEERING WHEELCAP-STEERING WHEEL
-
177547188 NUT-M16X2-6GNUT-M16X2-6G
-
181821065 WHEEL, STEERING 15"WHEEL, STEERING 15"
-
197556301 BUSHINGBUSHING
-
201821018 SHAFT-STEERING, UPPERSHAFT-STEERING, UPPER
-
211821019 SHAFT-STEERING, LOWER W/JOINTSSHAFT-STEERING, LOWER W/JOINTS
-
227542439 NUT, NYLOKNUT, NYLOK
-
237542324 NUT, NYLOKNUT, NYLOK
-
245412012 BOOT-DRIVER SIDE, RACKBOOT-DRIVER SIDE, RACK
-
257517909 BOLT-M10X1.25X65, HX WASH HDBOLT-M10X1.25X65, HX WASH HD
-
267556099 WASHERWASHER
-
277547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
287661203 PIN, COTTERPIN, COTTER
-
291820921 GEARCASE BOX, STEERING ASSYGEARCASE BOX, STEERING ASSY
-
307512371 BOLT, 5/16-18X3/4BOLT, 5/16-18X3/4
