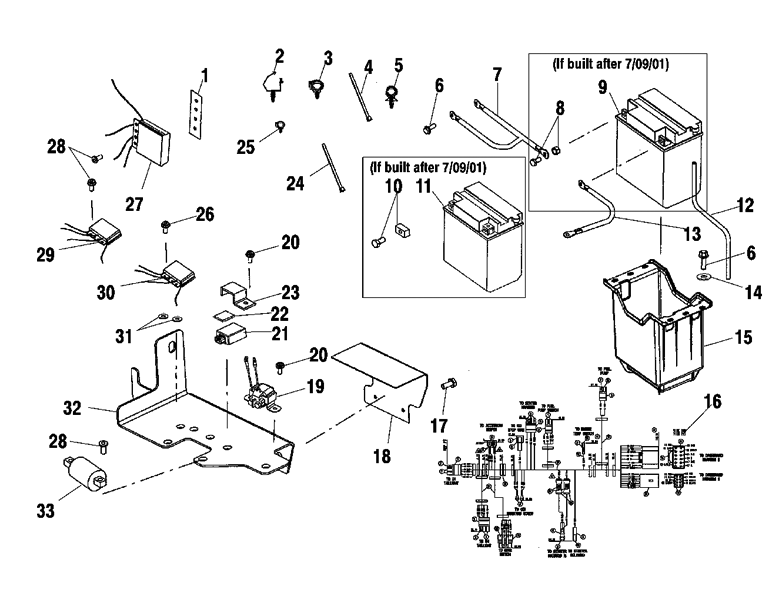

ELECTRICAL BATTERY для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска`
-
№АртикулНазвание
-
15133190 HEAT-SINKHEAT-SINK
-
27670109 CLIP-ROUTINGCLIP-ROUTING
-
34020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
47080761 CABLE TIE, 14''CABLE TIE, 14''
-
57670116 CLIP, ROUTING, .472 B.D., HINGEDCLIP, ROUTING, .472 B.D., HINGED
-
67517386 SCREWSCREW
-
74010605 CABLE-BLACK, BATT/FRAME/ENGCABLE-BLACK, BATT/FRAME/ENG
-
82201155 BOLT, BATT, KIT, 30 AMP (IF BUILT BEFORE 7/09/01BOLT, BATT, KIT, 30 AMP (IF BUILT BEFORE 7/09/01
-
94140012 BATTERY, 30 AMP, TOP MOUNT (IF BUILT BEFORE 7/09/01BATTERY, 30 AMP, TOP MOUNT (IF BUILT BEFORE 7/09/01
-
102202099 BATTERY BOLT-KIT, 30AH (IF BUILT BETWEEN 7/09/01 AND 01/01/02)BATTERY BOLT-KIT, 30AH (IF BUILT BETWEEN 7/09/01 AND 01/01/02)
-
102202172 BATTERY BOLT KIT, 30AH (IF BUILT AFTER 1/01/02)BATTERY BOLT KIT, 30AH (IF BUILT AFTER 1/01/02)
-
114010630 BATTERY-30 AMP, TOP MOUNT (IF BUILT AFTER 7/09/01)BATTERY-30 AMP, TOP MOUNT (IF BUILT AFTER 7/09/01)
-
125432077 TUBE, VENTTUBE, VENT
-
134010541 CABLE-13'', REDCABLE-13'', RED
-
147555859 WASHER, FLATWASHER, FLAT
-
155434037 BOX-BATTERYBOX-BATTERY
-
162460973 HARNESS-CHASSIS, RANGER (IF BUILT BEFORE 1/07/02)HARNESS-CHASSIS, RANGER (IF BUILT BEFORE 1/07/02)
-
162461082 HARNESS-CHASSIS, RANGER SRS 10 (IF BUILT AFTER 1/07/02)HARNESS-CHASSIS, RANGER SRS 10 (IF BUILT AFTER 1/07/02)
-
162200593 CKT.BRKR KIT, 20 AMPCKT.BRKR KIT, 20 AMP
-
164010781 DIODE, 100858, 6 AMP, SILICON ASSYDIODE, 100858, 6 AMP, SILICON ASSY
-
177512084 SCREWSCREW
-
185245617 BRACKET, ELECT COVERBRACKET, ELECT COVER
-
193087196 SWITCH, MAGNETIC (IF BUILT BEFORE 1/07/02)SWITCH, MAGNETIC (IF BUILT BEFORE 1/07/02)
-
193087198 SWITCH, MAGNETIC (IF BUILT AFTER 1/07/02)SWITCH, MAGNETIC (IF BUILT AFTER 1/07/02)
-
207512024 SCREWSCREW
-
213085639 CDI SYSTEM (IF BUILT BEFORE 1/07/02)CDI SYSTEM (IF BUILT BEFORE 1/07/02)
-
213087169 CDI-SYSTEM (IF BUILT AFTER 1/07/02)CDI-SYSTEM (IF BUILT AFTER 1/07/02)
-
225810455 PADPAD
-
235241416 BRACKET-CDIBRACKET-CDI
-
235246378 BRKT-CDI, DIGITALBRKT-CDI, DIGITAL
-
247080138 CABLE TIECABLE TIE
-
254020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
267512025 SCREW (IF BUILT BEFORE 1/07/02)SCREW (IF BUILT BEFORE 1/07/02)
-
274060173 RECT REG KIT, RPLC 4060173RECT REG KIT, RPLC 4060173
-
287512018 SCREWSCREW
-
294010606 SWITCH-HUB SAFETY, LR-84SWITCH-HUB SAFETY, LR-84
-
304060188 CUTOFF, 12V, ALT.OPR, LR-58 (IF BUILT BEFORE 1/07/02)CUTOFF, 12V, ALT.OPR, LR-58 (IF BUILT BEFORE 1/07/02)
-
304010740 CUTOFF-LR-58, 12VDC, ALT OPR, CON (IF BUILT AFTER 1/07/02)CUTOFF-LR-58, 12VDC, ALT OPR, CON (IF BUILT AFTER 1/07/02)
-
315020864 SPACERSPACER
-
333085227 COIL, IGNITIONCOIL, IGNITION
