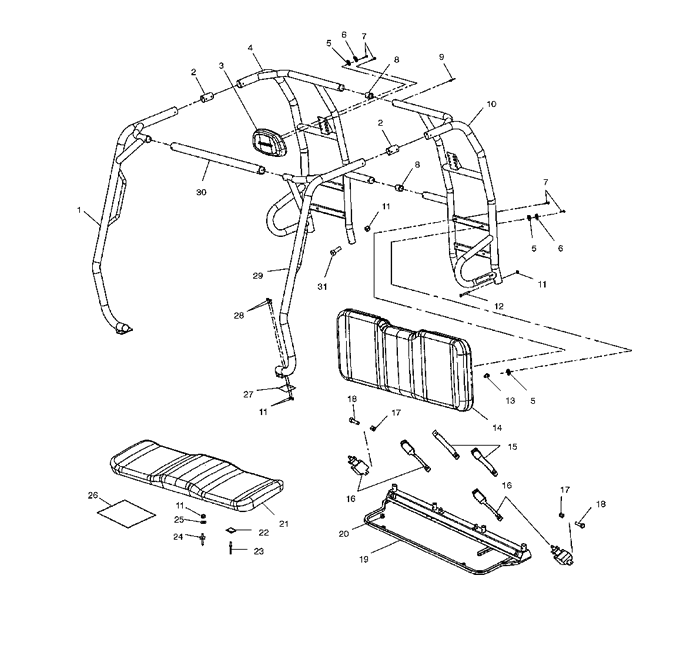

CAB FRAME для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1013333-067 CAB FRAME, RIGHT, FRONT, BLACK
    CAB FRAME, RIGHT, FRONT, BLACK
  • 2
    5243093-067 TUBE-COUPLER, TOP, REAR, BLACK
    TUBE-COUPLER, TOP, REAR, BLACK
  • 3
    5434177 HEADREST, RANGER GUNMETAL
    HEADREST, RANGER GUNMETAL
  • 4
    1013717 CAB ASSY FRAME (REAR) (RIGHT) (BLACK) (INC WARNING DECALS)
    CAB ASSY FRAME (REAR) (RIGHT) (BLACK) (INC WARNING DECALS)
  • 5
    7558301 WASHER, FLAT (IF BUILT BEFORE 2/18/02)
    WASHER, FLAT (IF BUILT BEFORE 2/18/02)
  • 6
    7552801 WASHER, SPRING LOCK (IF BUILT BEFORE 2/18/02)
    WASHER, SPRING LOCK (IF BUILT BEFORE 2/18/02)
  • 7
    7512247 BOLT (IF BUILT BEFORE 2/18/02)
    BOLT (IF BUILT BEFORE 2/18/02)
  • 7
    7517230 SCREW (IF BUILT AFTER 2/18/02)
    SCREW (IF BUILT AFTER 2/18/02)
  • 8
    5243092-067 TUBE-COUPLER, REAR (CENTER) (BLACK)
    TUBE-COUPLER, REAR (CENTER) (BLACK)
  • 9
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 10
    1013716 CAB ASSY FRAME (REAR) (LEFT) (BLACK) (INC WARNING DECALS)
    CAB ASSY FRAME (REAR) (LEFT) (BLACK) (INC WARNING DECALS)
  • 11
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 12
    7515339 BOLT
    BOLT
  • 13
    7541923 NUT-WELL (IF BUILT BEFORE 2/18/02)
    NUT-WELL (IF BUILT BEFORE 2/18/02)
  • 13
    7670096 NUT (IF BUILT AFTER 2/18/02)
    NUT (IF BUILT AFTER 2/18/02)
  • 14
    2682682 SEAT ASSY, BACK, GUNMETAL (IF BUILT BEFORE 2/18/02)
    SEAT ASSY, BACK, GUNMETAL (IF BUILT BEFORE 2/18/02)
  • 14
    2683124 SEAT ASSY, BACK, GUNMETAL (IF BUILT AFTER 2/18/02)
    SEAT ASSY, BACK, GUNMETAL (IF BUILT AFTER 2/18/02)
  • 15
    2632422 SEAT, BELT, CTR ASSY
    SEAT, BELT, CTR ASSY
  • 16
    2632421 SEAT BELT ASSY
    SEAT BELT ASSY
  • 17
    7542525 NUT, NYLOK
    NUT, NYLOK
  • 18
    7512539 BOLT
    BOLT
  • 19
    1013336-067 CAB, SEAT BASE (BLACK)
    CAB, SEAT BASE (BLACK)
  • 20
    5411042 GROMMET
    GROMMET
  • 21
    2682638 SEAT ASSY, RNGR, BTM, GUNMETAL (INCL. 11,23,24,25,26,27)
    SEAT ASSY, RNGR, BTM, GUNMETAL (INCL. 11,23,24,25,26,27)
  • 22
    5245676 TAB-MOUNT, SEAT
    TAB-MOUNT, SEAT
  • 23
    7661052 RIVET-3/16
    RIVET-3/16
  • 24
    5910096 PIN-SEAT LATCH
    PIN-SEAT LATCH
  • 25
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 26
    5812242 FOIL-HEAT SHEILD, DOG HOUSE
    FOIL-HEAT SHEILD, DOG HOUSE
  • 27
    5812313 PAD-CAB FRAME, FRONT
    PAD-CAB FRAME, FRONT
  • 28
    7515321 BOLT
    BOLT
  • 29
    1013332-067 CAB FRAME (LEFT) (FRONT) (BLACK)
    CAB FRAME (LEFT) (FRONT) (BLACK)
  • 30
    5244844-067 TUBE-CAB FRAME (TOP) (FRONT) (BLACK)
    TUBE-CAB FRAME (TOP) (FRONT) (BLACK)
  • 31
    7515319 BOLT
    BOLT
