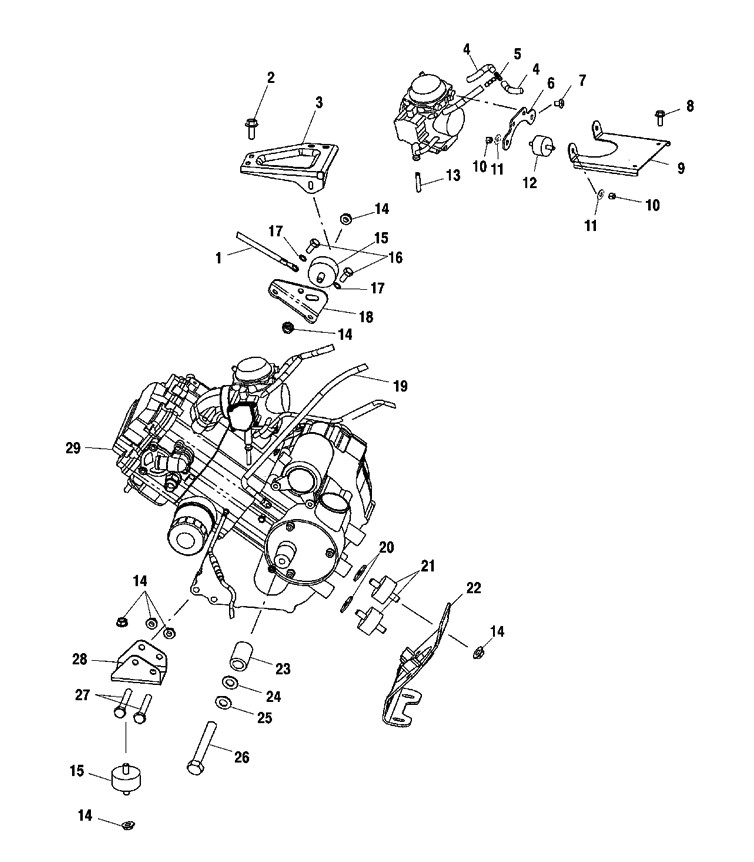

MOUNTING - ENGINE для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    4010605 CABLE-BLACK, BATT/FRAME/ENGINE
    CABLE-BLACK, BATT/FRAME/ENGINE
  • 2
    7515399 SCREW
    SCREW
  • 3
    5244244-067 BRKT-TOP MOTOR MNT, BLACK
    BRKT-TOP MOTOR MNT, BLACK
  • 4
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
  • 5
    7052075 FITTING, TEE
    FITTING, TEE
  • 6
    5245206-067 BRKT-CARB DAMPNER, CARB SIDE, BL
    BRKT-CARB DAMPNER, CARB SIDE, BL
  • 7
    3084205 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 8
    7517386 SCREW
    SCREW
  • 9
    5245024-067 BRKT-CARB DAMPNER, BLACK
    BRKT-CARB DAMPNER, BLACK
  • 10
    7542105 NUT HEX
    NUT HEX
  • 11
    7552605 WASHER
    WASHER
  • 12
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 13
    8360009-100 HOSE
    HOSE
  • 14
    7547108 NUT
    NUT
  • 15
    3110044 ISOLATOR, 3/8-24M/M, 60DURO
    ISOLATOR, 3/8-24M/M, 60DURO
  • 16
    7512315 BOLT
    BOLT
  • 17
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 18
    5241453 MOUNT-ENGINE, TOP PLTD
    MOUNT-ENGINE, TOP PLTD
  • 19
    4010539 CABLE-SOL./STARTER, RANGER
    CABLE-SOL./STARTER, RANGER
  • 20
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 21
    3021119 ISOLATOR-3/8-24M, 3/8-16M, 60DUR
    ISOLATOR-3/8-24M, 3/8-16M, 60DUR
  • 22
    1013134-067 MOUNT, ENGINE (REAR) (BLACK)
    MOUNT, ENGINE (REAR) (BLACK)
  • 23
    5430261 BUSHING
    BUSHING
  • 24
    5210748 WASHER
    WASHER
  • 25
    7575202 WASHER LOCK
    WASHER LOCK
  • 26
    7512566 BOLT
    BOLT
  • 27
    7515417 SCREW
    SCREW
  • 28
    5244245-067 BRKT-FRONT MOTOR MOUNT (BLACK)
    BRKT-FRONT MOTOR MOUNT (BLACK)
  • 29
    3085556 SHORT BLOCK ASSY
    SHORT BLOCK ASSY
