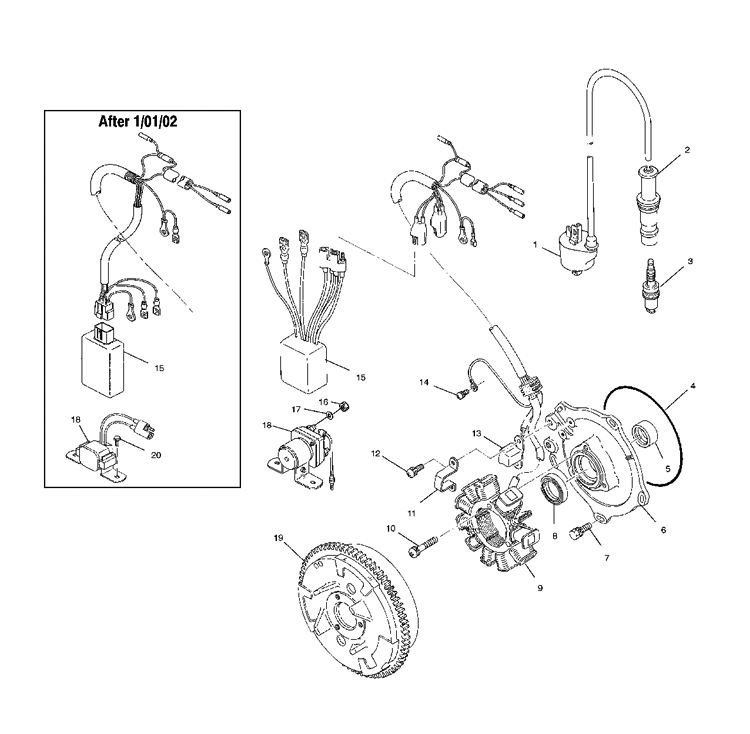

MAGNETO для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
13085227 COIL, IGNITION (INC 1,2)COIL, IGNITION (INC 1,2)
-
23084980 SPARK PLUG CAPSPARK PLUG CAP
-
33070175 SPARKPLUG, BKR5ESPARKPLUG, BKR5E
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63087167 PLATE ASSY (INC 5,6,8-14)PLATE ASSY (INC 5,6,8-14)
-
63086981 PLATEPLATE
-
73081657 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
83084973 SEAL, OILSEAL, OIL
-
93087168 STATOR (INC 13)STATOR (INC 13)
-
103086985 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
113085554 BAND, PULSEBAND, PULSE
-
123084976 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
133085360 COIL, PULSERCOIL, PULSER
-
143081256 SCREWANDWASHER ASSYSCREWANDWASHER ASSY
-
153086982 CDI-SYSTEM (IF BUILT BEFORE 1/1/02)CDI-SYSTEM (IF BUILT BEFORE 1/1/02)
-
153087169 CDI-SYSTEM (IF BUILT AFTER 1/1/02)CDI-SYSTEM (IF BUILT AFTER 1/1/02)
-
163083073 NUT (IF BUILT BEFORE 1/1/02)NUT (IF BUILT BEFORE 1/1/02)
-
173080077 WASHER SPRING (IF BUILT BEFORE 1/1/02)WASHER SPRING (IF BUILT BEFORE 1/1/02)
-
183085521 SWITCH, MAGNETIC (IF BUILT BEFORE 1/1/02)SWITCH, MAGNETIC (IF BUILT BEFORE 1/1/02)
-
183087198 SWITCH, MAGNETIC (IF BUILT AFTER 1/1/02)SWITCH, MAGNETIC (IF BUILT AFTER 1/1/02)
-
193087166 FLYWHEEL-W/RING GEARFLYWHEEL-W/RING GEAR
-
203085359 BOLT, FLANGEBOLT, FLANGE
