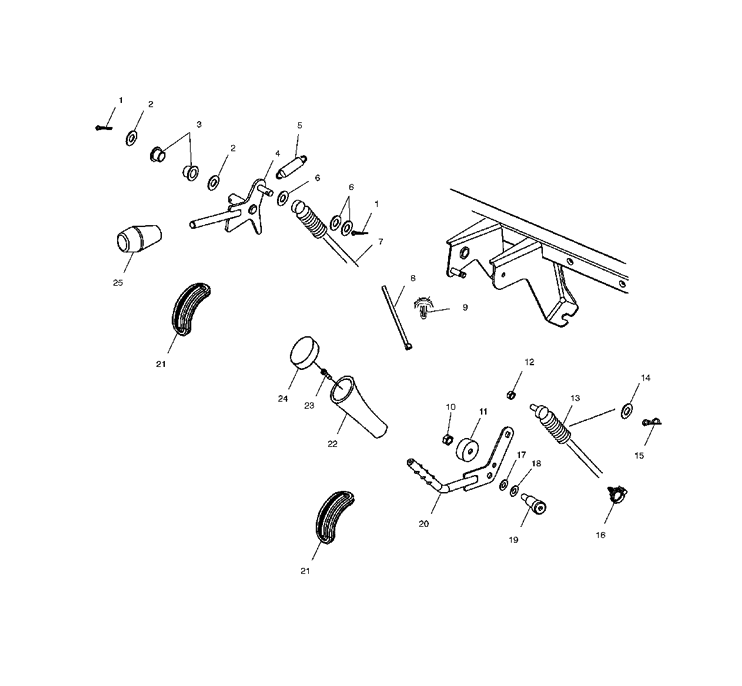

GEAR SELECTOR - DIFFERENTIAL LOCK для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7661407 COTTER PIN
    COTTER PIN
  • 2
    7555919 WASHER
    WASHER
  • 3
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 4
    1013584-067 DIFF LOCK, BLACK
    DIFF LOCK, BLACK
  • 5
    7042029 SPRING
    SPRING
  • 6
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 7
    7080939 CABLE-DIFFERENTIAL
    CABLE-DIFFERENTIAL
  • 8
    7080761 CABLE TIE, 14''
    CABLE TIE, 14''
  • 9
    7080965 MOUNT-CABLE TIE, .25
    MOUNT-CABLE TIE, .25
  • 10
    7542344 NUT, NYLOK
    NUT, NYLOK
  • 11
    5132928 BEARING-SHIFTER
    BEARING-SHIFTER
  • 12
    7547144 NUT, NYLOK M8X1.25
    NUT, NYLOK M8X1.25
  • 13
    7081005 CABLE-SHIFT
    CABLE-SHIFT
  • 14
    7555923 WASHER
    WASHER
  • 15
    7661140 PIN-CLIP, 14MM
    PIN-CLIP, 14MM
  • 16
    7670102 CLIP
    CLIP
  • 17
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 18
    7555796 WASHER, CONE
    WASHER, CONE
  • 19
    7517745 BOLT, SHLDR, 3/8X3/4X5/16
    BOLT, SHLDR, 3/8X3/4X5/16
  • 20
    1541628-067 WELD, SHIFTER BELL CRANK
    WELD, SHIFTER BELL CRANK
  • 21
    5412154 GROMMET-GEAR SHIFT
    GROMMET-GEAR SHIFT
  • 22
    5411007 KNOB ASSY, HI/REV
    KNOB ASSY, HI/REV
  • 23
    7512024 SCREW
    SCREW
  • 24
    5412079 COVER-SHIFTER
    COVER-SHIFTER
  • 25
    7081016 KNOB-DIF LOCK
    KNOB-DIF LOCK
