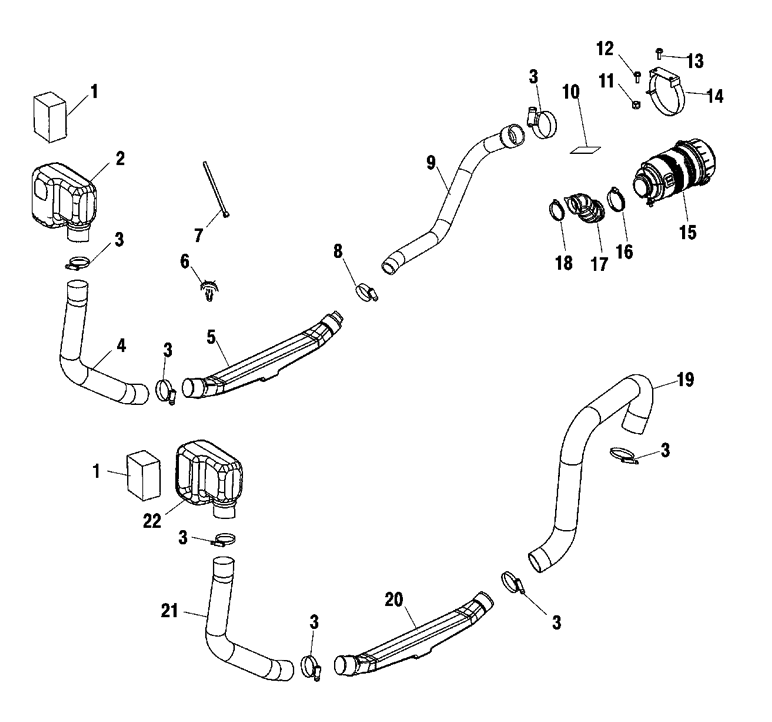

ENGINE AND CLUTCH AIR INTAKE для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5812253 FILTER-INTAKE
    FILTER-INTAKE
  • 2
    5434323 BOX, AIR BAFFELING ENGINE
    BOX, AIR BAFFELING ENGINE
  • 3
    7080451 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    1910482 HOSE-AIRBAX, FRONT
    HOSE-AIRBAX, FRONT
  • 5
    5434291 DUCT-AIR INTAKE, ENGINE
    DUCT-AIR INTAKE, ENGINE
  • 6
    7080965 MOUNT-CABLE TIE, .25
    MOUNT-CABLE TIE, .25
  • 7
    7080761 CABLE TIE, 14''
    CABLE TIE, 14''
  • 8
    7080560 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    1910483 HOSE-AIRBAX, REAR
    HOSE-AIRBAX, REAR
  • 10
    5810290 PAD, BATTERY (IF BUILT AFTER 01/01/02)
    PAD, BATTERY (IF BUILT AFTER 01/01/02)
  • 11
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 12
    7515398 SCREW
    SCREW
  • 13
    7512399 SCREW
    SCREW
  • 14
    1240101-067 WELD, AIR CLEANER HANDER
    WELD, AIR CLEANER HANDER
  • 16
    7080413 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 17
    5411976 BOOT-AIRBOX
    BOOT-AIRBOX
  • 18
    7080656 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 19
    1910491 HOSE-CLUTCH, INTAKE (REAR)
    HOSE-CLUTCH, INTAKE (REAR)
  • 20
    5434054 DUCT-AIR INTAKE
    DUCT-AIR INTAKE
  • 21
    1910490 HOSE-CLUTCH, INTAKE (FRONT)
    HOSE-CLUTCH, INTAKE (FRONT)
  • 22
    5434141 AIR BOX, BAFFELING
    AIR BOX, BAFFELING
