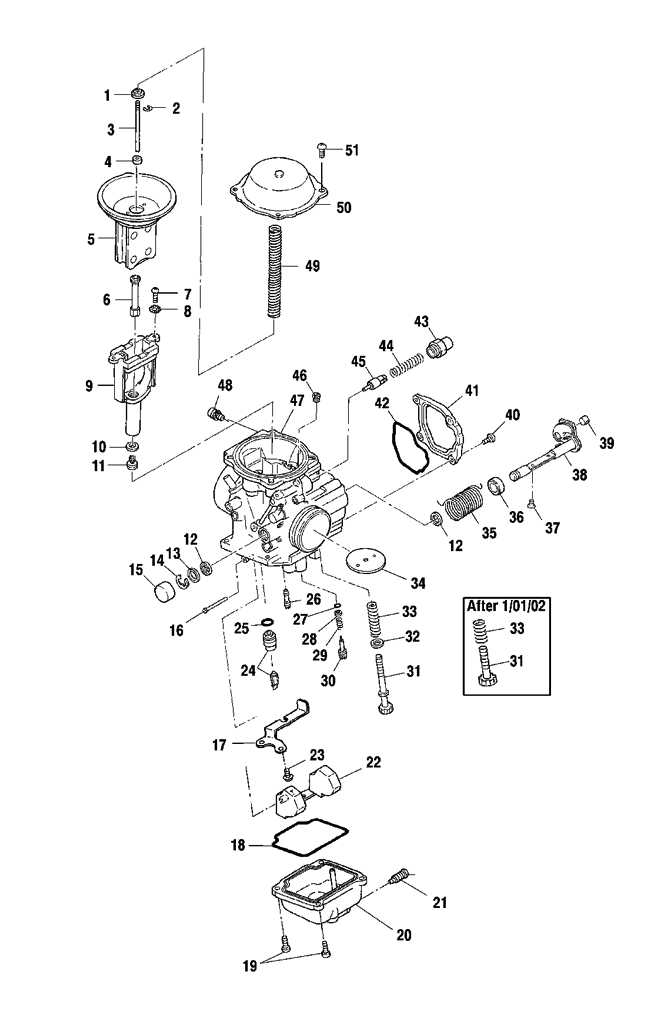

CARBURETOR для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33131367 NEEDLE-JETNEEDLE-JET
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
63131366 JET-NEEDLE(P-8) (IF BUILT BEFORE 1/01/02)JET-NEEDLE(P-8) (IF BUILT BEFORE 1/01/02)
-
63131420 JET NEEDLE (IF BUILT AFTER 1/01/02)JET NEEDLE (IF BUILT AFTER 1/01/02)
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
93130504 JETBLOCK ASSYJETBLOCK ASSY
-
103130014 WASHERWASHER
-
113130563 MAIN JET, #135 (IF BUILT BEFORE 1/01/02)MAIN JET, #135 (IF BUILT BEFORE 1/01/02)
-
113131426 MAIN JET #135 (IF BUILT AFTER 1/01/02)MAIN JET #135 (IF BUILT AFTER 1/01/02)
-
123130515 SEALSEAL
-
133130517 SEALSEAL
-
143130518 E-RINGE-RING
-
153130519 CAPCAP
-
163130361 PIN, FLOATPIN, FLOAT
-
173130594 PLATEPLATE
-
183130532 O-RINGO-RING
-
193130520 SCREWSCREW
-
203131212 FLOAT BODY ASSYFLOAT BODY ASSY
-
213130521 SCREWSCREW
-
223130529 FLOAT ASSYFLOAT ASSY
-
233130591 SCREWSCREW
-
243131361 VALVE-NEEDLEVALVE-NEEDLE
-
253130533 O-RINGO-RING
-
263130526 JET, PILOT, #42.5 (IF BUILT BEFORE 1/01/02)JET, PILOT, #42.5 (IF BUILT BEFORE 1/01/02)
-
263131421 JET PILOT #42.5 (IF BUILT AFTER 1/01/02)JET PILOT #42.5 (IF BUILT AFTER 1/01/02)
-
273130522 O-RINGO-RING
-
283130523 WASHERWASHER
-
293130525 SPRINGSPRING
-
303130524 ADJUSTER (IF BUILT BEFORE 1/01/02)ADJUSTER (IF BUILT BEFORE 1/01/02)
-
303131389 ADJUSTER (IF BUILT AFTER 1/01/02)ADJUSTER (IF BUILT AFTER 1/01/02)
-
313130546 SCREW, ADJUST (IF BUILT BEFORE 1/01/02)SCREW, ADJUST (IF BUILT BEFORE 1/01/02)
-
313131423 SCREW-ADJUST (IF BUILT AFTER 1/01/02)SCREW-ADJUST (IF BUILT AFTER 1/01/02)
-
323130545 RINGRING
-
333130544 SPRING (IF BUILT BEFORE 1/01/02)SPRING (IF BUILT BEFORE 1/01/02)
-
333130836 SPRING (IF BUILT AFTER 1/01/02)SPRING (IF BUILT AFTER 1/01/02)
-
343130502 VALVE, THROTTLE, 100VALVE, THROTTLE, 100
-
353130589 SPRINGSPRING
-
363130514 RINGRING
-
373130501 SCREWSCREW
-
383130513 SHAFT ASM, THROTTLESHAFT ASM, THROTTLE
-
393130543 GUIDE, CABLEGUIDE, CABLE
-
403130535 SCREWSCREW
-
413130511 COVERCOVER
-
423130512 O-RINGO-RING
-
433130199 HOLDER, GUIDEHOLDER, GUIDE
-
443130538 SPRINGSPRING
-
453130593 PLUNGER ASSYPLUNGER ASSY
-
463130625 JET, AIR, PILOT, #160JET, AIR, PILOT, #160
-
473131365 CARBURETOR ASSY (IF BUILT BEFORE 1/01/02) (INC 1-38,43-51)CARBURETOR ASSY (IF BUILT BEFORE 1/01/02) (INC 1-38,43-51)
-
473131441 CARBURETOR ASSY (IF BUILT AFTER 1/01/02) (INC 1-38,43-51)CARBURETOR ASSY (IF BUILT AFTER 1/01/02) (INC 1-38,43-51)
-
483084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
493130505 SPRINGSPRING
-
503130503 COVER ASSYCOVER ASSY
-
513130592 SCREWSCREW
