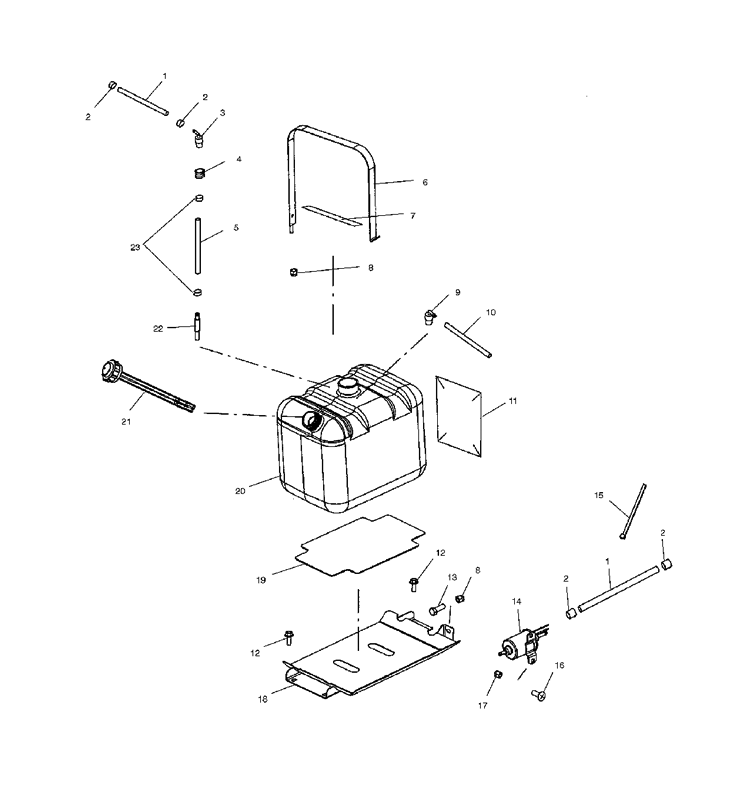

FUEL TANK для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
18450040-150 HOSEHOSE
-
27080003 CLAMP, HOSECLAMP, HOSE
-
37052259 FITTING, 1/4'' 90° DEXFITTING, 1/4'' 90° DEX
-
47052362 GROMMET-FLANGED, .36X.56X1.06GROMMET-FLANGED, .36X.56X1.06
-
58350019-41 HOSEHOSE
-
61013471-067 TANK STRAP (BLACK)TANK STRAP (BLACK)
-
75812231 PAD-FUEL TANK, TOPPAD-FUEL TANK, TOP
-
87542324 NUT, NYLOKNUT, NYLOK
-
97052095 FITTING, 90 DEG, 1/8FITTING, 90 DEG, 1/8
-
108360009-50 HOSEHOSE
-
115812252 FOIL-TANKFOIL-TANK
-
127512399 SCREWSCREW
-
137515398 SCREWSCREW
-
144010658 PUMP-FUEL, 12V, PRSS RELIEF, 1-4PPUMP-FUEL, 12V, PRSS RELIEF, 1-4P
-
157080138 CABLE TIECABLE TIE
-
167517685 SCREWSCREW
-
177542122 NUT-NYLOKNUT-NYLOK
-
181013487-067 BRACKET FUEL TANK MOUNT (BLACK)BRACKET FUEL TANK MOUNT (BLACK)
-
195812230 PAD-FUEL TANK, BOTTOMPAD-FUEL TANK, BOTTOM
-
205433861 TANK-FUEL, RANGER ASSYTANK-FUEL, RANGER ASSY
-
211240119 CAP-GAS W/GAUGECAP-GAS W/GAUGE
-
227052301 PICK-UP-FUEL, W/FILTER, 105MICRNPICK-UP-FUEL, W/FILTER, 105MICRN
-
237080402 RING, COMPRESSIONRING, COMPRESSION
