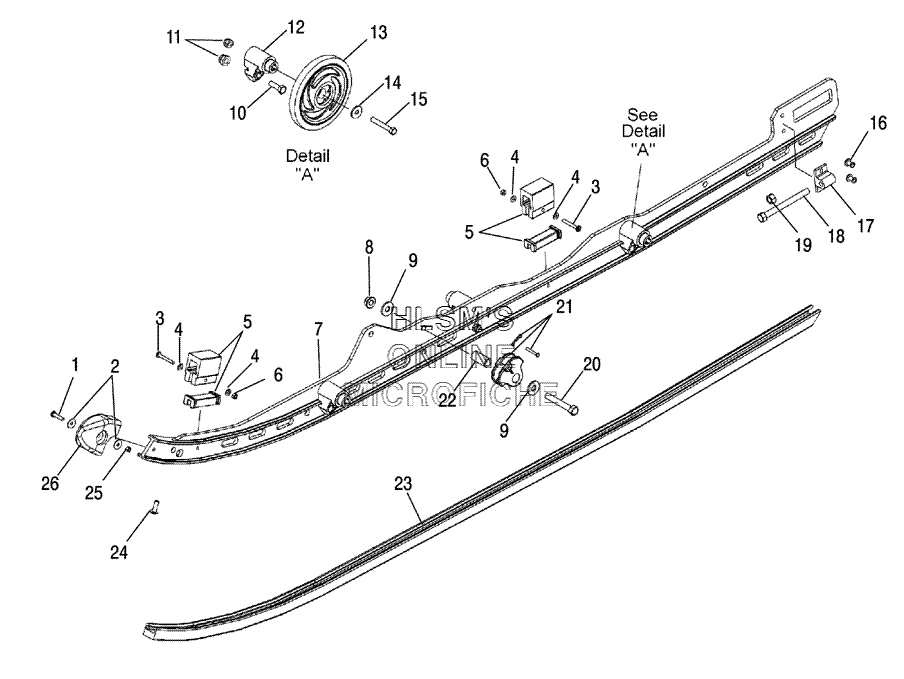

SUSPENSION - RAIL MOUNTING для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска`
-
№АртикулНазвание
-
17518335 BOLTBOLT
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHER, FLATWASHER, FLAT
-
55521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
55432946 LINER, BUMPERLINER, BUMPER
-
67541925 NUT, NYLOKNUT, NYLOK
-
71542033 RAIL ASSY, BASIC, 144, LWT (LEFT) (INCL. 1 7, 16, 17, 25, 26)RAIL ASSY, BASIC, 144, LWT (LEFT) (INCL. 1 7, 16, 17, 25, 26)
-
71542034 RAIL ASSY, BASIC, 144, LWT (RIGHT) (INCL. 1 7, 16, 17, 25, 26)RAIL ASSY, BASIC, 144, LWT (RIGHT) (INCL. 1 7, 16, 17, 25, 26)
-
87547263 NUT, NYLOKNUT, NYLOK
-
97555983 WASHER, FLATWASHER, FLAT
-
107515317 BOLTBOLT
-
117542324 NUT, NYLOKNUT, NYLOK
-
125631446 BLOCK WHEEL MOUNTBLOCK WHEEL MOUNT
-
131590387-293 WHEEL ASSY, SCRL (RED)WHEEL ASSY, SCRL (RED)
-
137710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
133514384 BEARING, NTN (1 PER WHEEL)BEARING, NTN (1 PER WHEEL)
-
147556179 WASHER SPRING, CONWASHER SPRING, CON
-
157515346 SCREWSCREW
-
167621501 RIVETRIVET
-
175130530 BLOCK IDLER BOLT ADJUSTBLOCK IDLER BOLT ADJUST
-
187517227 SCREWSCREW
-
197542404 NUTNUT
-
207515438 BOLTBOLT
-
215434334 GUIDE SPRING SQUAREGUIDE SPRING SQUARE
-
217661123 PIN CLEVIS (3/16X1 1/4)PIN CLEVIS (3/16X1 1/4)
-
217661644 PIN, HITCHPIN, HITCH
-
225333948 SPACER (.407X.625X1.33)SPACER (.407X.625X1.33)
-
235521633 SLIDER, SERVICE, BASIC (.45/74'')SLIDER, SERVICE, BASIC (.45/74'')
-
247515199 SCREWSCREW
-
257541925 NUT, NYLOKNUT, NYLOK
-
265435527 CAP RAIL TIPCAP RAIL TIP
