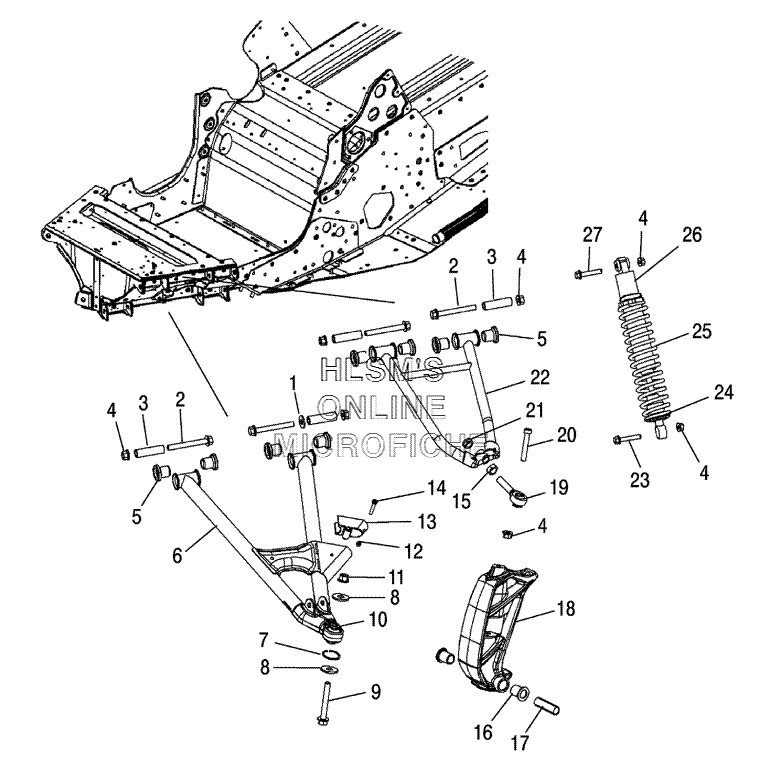

SUSPENSION - FRONT для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

№

Артикул

Название
1

7555893 WASHER, FLAT

WASHER, FLAT
2

7518384 SCREW, HEXAGON

SCREW, HEXAGON
3

5133860 SHAFT PIVOT

SHAFT PIVOT
4

7547180 NUT FLANGED, NYLON

NUT FLANGED, NYLON
5

5434932 BUSHING PIVOT

BUSHING PIVOT
6

2203021-385 LCA, FUSION KIT (LEFT/SILVER) (INCL. 3 7, 12 14)

LCA, FUSION KIT (LEFT/SILVER) (INCL. 3 7, 12 14)
6

2203022-385 LCA, FUSION KIT (RIGHT/SILVER) (INCL. 3 7, 12 14)

LCA, FUSION KIT (RIGHT/SILVER) (INCL. 3 7, 12 14)
7

7710539 RING RETAINING (1.25 ID)

RING RETAINING (1.25 ID)
8

7556153 WASHER, 3/8 FW

WASHER, 3/8 FW
9

7518478 SCREW, HEXAGON CAP

SCREW, HEXAGON CAP
10

2203107 BEARING, SPHERICAL KIT (LOWER) (INCL. 7)

BEARING, SPHERICAL KIT (LOWER) (INCL. 7)
11

7547344 NUT, HEXAGON LOC

NUT, HEXAGON LOC
12

7541925 NUT, NYLOK

NUT, NYLOK
13

5435522 SLIDE SWAY BAR (9/16)

SLIDE SWAY BAR (9/16)
14

7510504 SCREW

SCREW
15

7542711 NUT JAM

NUT JAM
16

5133983 BUSHING SKI PIVOT

BUSHING SKI PIVOT
17

5010158 BUSHING, PIVOT

BUSHING, PIVOT
18

1822795 SPINDLE, FUSION ASSY (LEFT) (INCL. 16)

SPINDLE, FUSION ASSY (LEFT) (INCL. 16)
18

1822796 SPINDLE, FUSION ASSY (RIGHT) (INCL. 16)

SPINDLE, FUSION ASSY (RIGHT) (INCL. 16)
19

7061145 ROD END 1/2 (30Ш)

ROD END 1/2 (30Ш)
20

7518428 SCREW

SCREW
21

7547104 NUT

NUT
22

2203019-385 UCA, FUSION KIT (LEFT/SILVER) (INCL. 3, 5, 12, 15, 19, 21)

UCA, FUSION KIT (LEFT/SILVER) (INCL. 3, 5, 12, 15, 19, 21)
22

2203020-385 UCA, FUSION KIT (RIGHT/SILVER) (INCL. 3, 5, 12, 15, 19, 21)

UCA, FUSION KIT (RIGHT/SILVER) (INCL. 3, 5, 12, 15, 19, 21)
23

7518278 SCREW, HEXAGON FLANGE

SCREW, HEXAGON FLANGE
24

5630580 RETAINER, SPRING, SLOTTED

RETAINER, SPRING, SLOTTED
25

7041575-070 SPRING

SPRING
26

7043141 SHOCK IFS, FOX IFP

SHOCK IFS, FOX IFP
27

7518554 SCREW, HEXAGON FLANGE

SCREW, HEXAGON FLANGE
