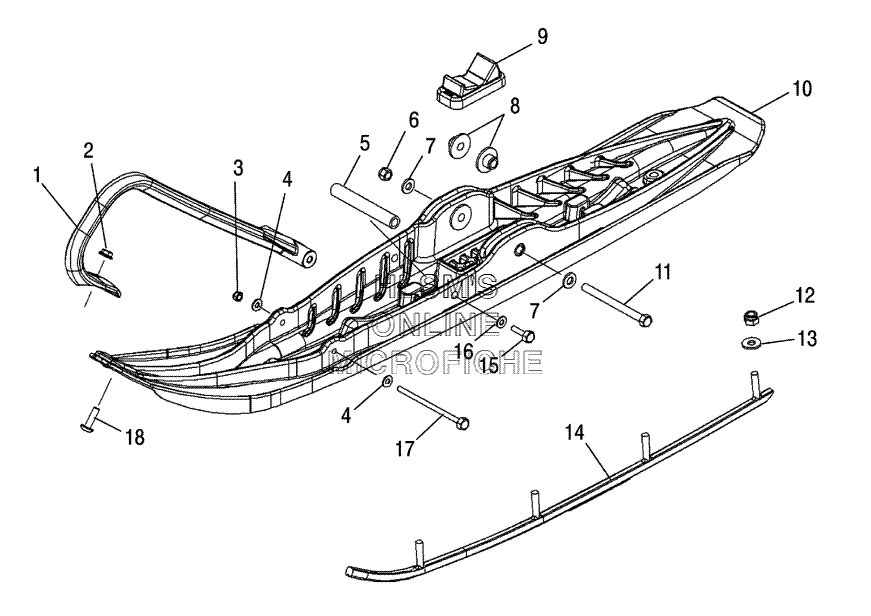

SKI ASSEMBLY для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-293 TOE PLASTIC, SKI (RED)
    TOE PLASTIC, SKI (RED)
  • 2
    7542321 NUT, FLANGE
    NUT, FLANGE
  • 3
    7542122 NUT NYLOK
    NUT NYLOK
  • 4
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 5
    5135264 TUBE REINFORCING, SKI
    TUBE REINFORCING, SKI
  • 6
    7547263 NUT NYLOK
    NUT NYLOK
  • 7
    7556130 WASHER
    WASHER
  • 8
    5134797 BUSHING PLSTC SKI, LONG (.390 ID)
    BUSHING PLSTC SKI, LONG (.390 ID)
  • 9
    5412864 STOP SKI RUBBER
    STOP SKI RUBBER
  • 10
    1822881-070 SKI, PLASTIC ASSY, IQ SINGLE (BLACK)
    SKI, PLASTIC ASSY, IQ SINGLE (BLACK)
  • 11
    7518481 SCREW, HEXAGON CAP
    SCREW, HEXAGON CAP
  • 12
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 13
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 14
    2875716 SKAG KIT, 4'', 60 DEG (PAIR)
    SKAG KIT, 4'', 60 DEG (PAIR)
  • 15
    7512492 SCREW
    SCREW
  • 16
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 17
    7518047 BOLT, HEXAGON
    BOLT, HEXAGON
  • 18
    7516317 SCREW, TORX NYLON
    SCREW, TORX NYLON
