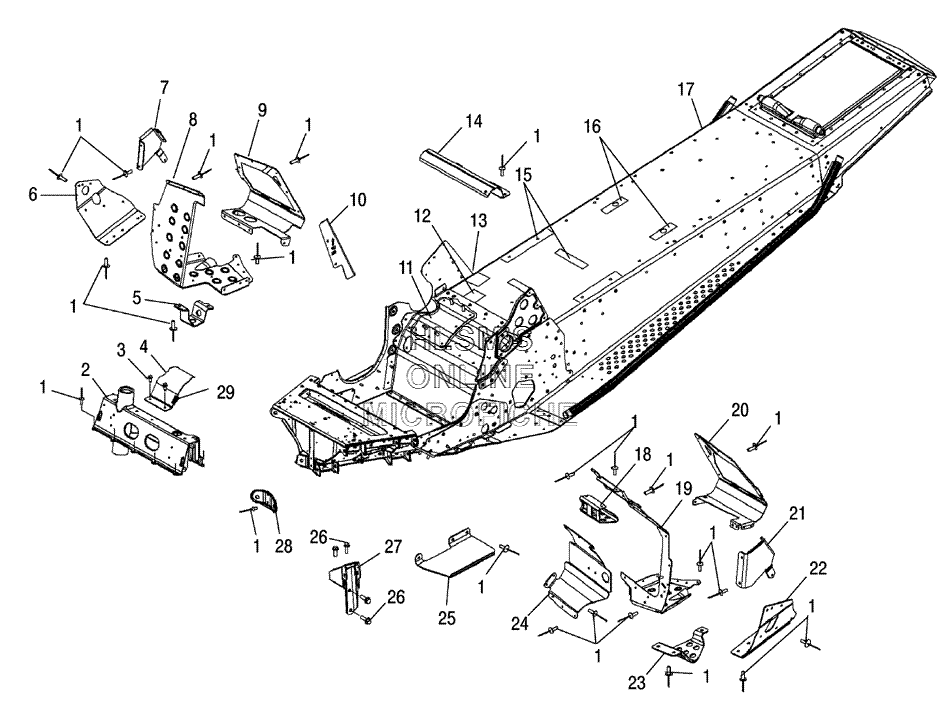

FRONT CHASSIS для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 2
    1014894 BRACKET
    BRACKET
  • 3
    7517386 SCREW
    SCREW
  • 4
    5249468 SHIELD HEAT, ALTERNATOR
    SHIELD HEAT, ALTERNATOR
  • 5
    5248945 LEG SUPPORT (RIGHT)
    LEG SUPPORT (RIGHT)
  • 6
    5248808 SUPPORT FOOTREST (LOWER/RIGHT)
    SUPPORT FOOTREST (LOWER/RIGHT)
  • 7
    5248401 SUPPORT FOOTREST, BUMPER (LEFT)
    SUPPORT FOOTREST, BUMPER (LEFT)
  • 8
    1015091 FOOTREST ASSY WITH STUD (RIGHT)
    FOOTREST ASSY WITH STUD (RIGHT)
  • 9
    5248477 TOECLIP (RIGHT)
    TOECLIP (RIGHT)
  • 10
    5250044 CLIP BULKHEAD SIDE (RIGHT)
    CLIP BULKHEAD SIDE (RIGHT)
  • 11
    1014565 STEERING BRACKET MOUNT (LOWER)
    STEERING BRACKET MOUNT (LOWER)
  • 11
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 12
    5812612 SEAL TUNNEL WEARSTRIP
    SEAL TUNNEL WEARSTRIP
  • 13
    5812527 TAPE POLYETHYLENE
    TAPE POLYETHYLENE
  • 14
    5248667 GUARD WIRING ECU/JACKSHAFT
    GUARD WIRING ECU/JACKSHAFT
  • 15
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 16
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 17
    1010004-309 CHASSIS ASSY, NATURAL
    CHASSIS ASSY, NATURAL
  • 18
    5249078 MOUNT PLENUM
    MOUNT PLENUM
  • 19
    1015301 FOOTREST WITH STUD ASSY (LEFT)
    FOOTREST WITH STUD ASSY (LEFT)
  • 20
    5248476 TOECLIP (LEFT)
    TOECLIP (LEFT)
  • 21
    5248402 SUPPORT FOOTREST, BUMPER (RIGHT)
    SUPPORT FOOTREST, BUMPER (RIGHT)
  • 22
    5248807 SUPPORT FOOTREST (LOWER/LEFT)
    SUPPORT FOOTREST (LOWER/LEFT)
  • 23
    5248403 LEG SUPPORT (LEFT)
    LEG SUPPORT (LEFT)
  • 24
    5247420 BRACKET, CLUTCH GUARD
    BRACKET, CLUTCH GUARD
  • 25
    5249757 GUARD BELT
    GUARD BELT
  • 26
    7518179 SCREW
    SCREW
  • 27
    1014462-067 WELD/SHOCK MOUNT ASSY (LEFT/BLACK)
    WELD/SHOCK MOUNT ASSY (LEFT/BLACK)
  • 27
    1014463-067 WELD/SHOCK MOUNT ASSY (RIGHT/BLACK)
    WELD/SHOCK MOUNT ASSY (RIGHT/BLACK)
  • 28
    5247372 BRACE, A-ARM (FRONT/LOWER)
    BRACE, A-ARM (FRONT/LOWER)
  • 29
    5521131 TRIM, EDGE, 6FT (BLACK)
    TRIM, EDGE, 6FT (BLACK)
