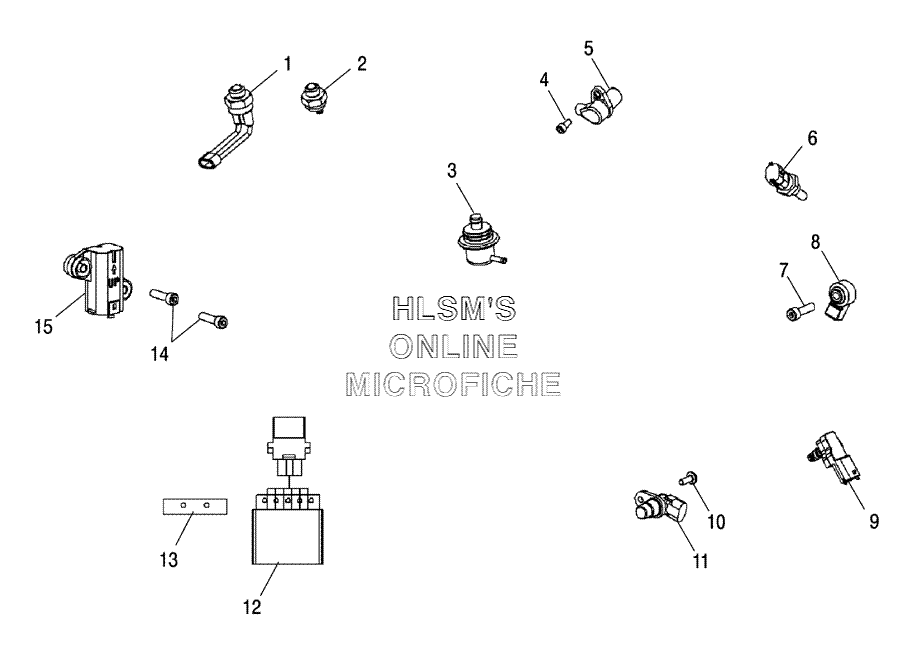

ELECTRICAL - SENSORS AND SWITCHES для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    4011005 POSITION SWITCH INDICATOR
    POSITION SWITCH INDICATOR
  • 2
    4011340 SWITCH POSITION (TYP21-620)
    SWITCH POSITION (TYP21-620)
  • 3
    0451351 VALVE, PRESSURE REGULATOR
    VALVE, PRESSURE REGULATOR
  • 4
    0452957 BOLT
    BOLT
  • 5
    0452956 SENSOR SPEED
    SENSOR SPEED
  • 6
    0451350 SENSOR, WATER TEMPERATURE
    SENSOR, WATER TEMPERATURE
  • 7
    0451565 SCREW
    SCREW
  • 8
    0451509 SENSOR, KNOCK
    SENSOR, KNOCK
  • 9
    0451352 SENSOR
    SENSOR
  • 10
    0451998 BOLT
    BOLT
  • 11
    0451354 SENSOR, PHASE
    SENSOR, PHASE
  • 12
    4011293 CONTROLLER H BRIDGE
    CONTROLLER H BRIDGE
  • 13
    5210650 HEAT SINK
    HEAT SINK
  • 14
    7661146 RIVET, ALUMINUM
    RIVET, ALUMINUM
  • 15
    4011026 SWITCH ROLL OVER
    SWITCH ROLL OVER
