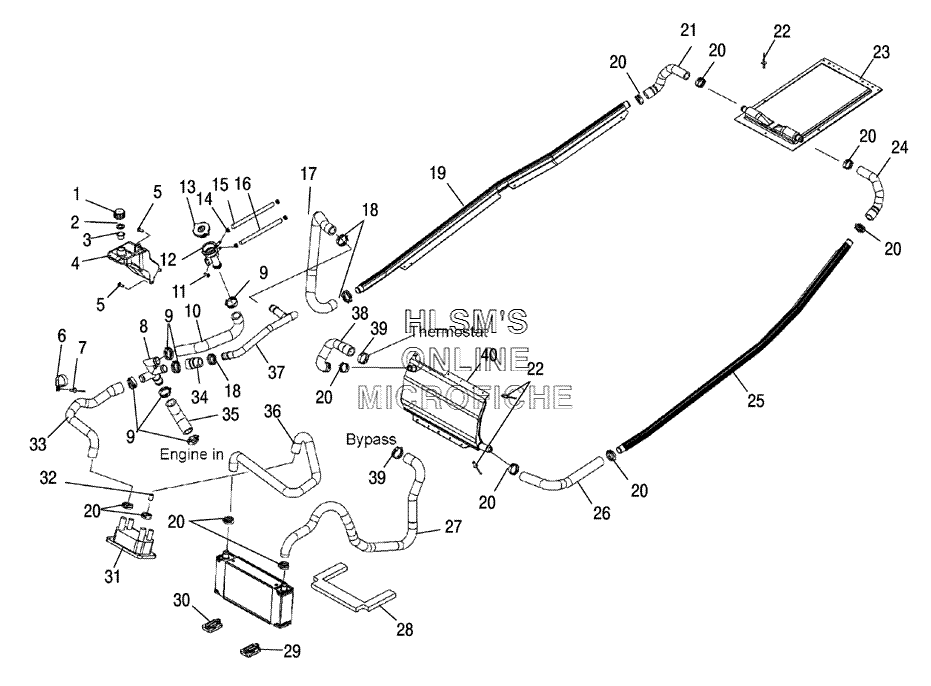

COOLING SYSTEM для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 2
    5810279 GASKET
    GASKET
  • 3
    5433774 CAP, PLUG 9X, FLEX TEMP (GREEN)
    CAP, PLUG 9X, FLEX TEMP (GREEN)
  • 4
    5436215 BOTTLE COOLANT
    BOTTLE COOLANT
  • 5
    7512208 SCREW
    SCREW
  • 6
    7080807 CLAMP HOSE
    CLAMP HOSE
  • 7
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 8
    5436228 MANIFOLD COOLANT RETURN
    MANIFOLD COOLANT RETURN
  • 9
    7080844 CLAMP, SPRINGBAND 35/12 (BLACK)
    CLAMP, SPRINGBAND 35/12 (BLACK)
  • 10
    5412853 HOSE FILLER/MANIFOLD
    HOSE FILLER/MANIFOLD
  • 11
    7512095 SCREW
    SCREW
  • 12
    5435196 FILLER NECK, REMOTE, COOLANT, 2 FIT
    FILLER NECK, REMOTE, COOLANT, 2 FIT
  • 13
    1240044 CAP PRESSURE, 13 PSI
    CAP PRESSURE, 13 PSI
  • 14
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    8450115-40 HOSE HIGH TEMP (0.25'' I.D) (.40CM)
    HOSE HIGH TEMP (0.25'' I.D) (.40CM)
  • 16
    8450003-1525 LINE, FUEL (1/4 ID 1525 CM)
    LINE, FUEL (1/4 ID 1525 CM)
  • 17
    5412851 HOSE GRIPPER/TUBE
    HOSE GRIPPER/TUBE
  • 18
    7080843 CLAMP, SPRINGBAND (32/12) (BROWN)
    CLAMP, SPRINGBAND (32/12) (BROWN)
  • 19
    5134669 EXCHANGER GRIPPER/COOLER (RIGHT)
    EXCHANGER GRIPPER/COOLER (RIGHT)
  • 20
    7080842 CLAMP, SPRINGBAND (29/12) (BLACK)
    CLAMP, SPRINGBAND (29/12) (BLACK)
  • 21
    5412775 HOSE GRIPER/COOLER (REAR/RIGHT)
    HOSE GRIPER/COOLER (REAR/RIGHT)
  • 22
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 23
    1240173 COOLER ASSY, LONG (REAR)
    COOLER ASSY, LONG (REAR)
  • 24
    5412774 HOSE GRIPER/COOLER (REAR/LEFT)
    HOSE GRIPER/COOLER (REAR/LEFT)
  • 25
    5134668 EXCHANGER GRIPPER/COOLER (LEFT)
    EXCHANGER GRIPPER/COOLER (LEFT)
  • 26
    5412766 HOSE CNTR COOLER/GRIPPER (LEFT)
    HOSE CNTR COOLER/GRIPPER (LEFT)
  • 27
    5412783 HOSE ENGINE OUT/RADIATOR
    HOSE ENGINE OUT/RADIATOR
  • 28
    5812496 MOUNT RADIATOR, FOAM
    MOUNT RADIATOR, FOAM
  • 29
    1240149 RADIATOR ASSY
    RADIATOR ASSY
  • 30
    5412513 MOUNT RADIATOR, RUBBER
    MOUNT RADIATOR, RUBBER
  • 31
    1240256 COOLER OIL, 6 PLATE
    COOLER OIL, 6 PLATE
  • 32
    5135328 RESTRICTOR COOLANT
    RESTRICTOR COOLANT
  • 33
    5412786 HOSE OIL CLR OUT/COOLANT BTLE
    HOSE OIL CLR OUT/COOLANT BTLE
  • 34
    5412852 CONNECTOR TUBE/MANIFOLD COOLANT
    CONNECTOR TUBE/MANIFOLD COOLANT
  • 35
    5412782 HOSE MANIFOLD/ENGINE IN
    HOSE MANIFOLD/ENGINE IN
  • 36
    5412784 HOSE RADIATOR/OIL COOLER IN
    HOSE RADIATOR/OIL COOLER IN
  • 37
    5334771 TUBE GRIPPER/MANIFOLD
    TUBE GRIPPER/MANIFOLD
  • 38
    5412984 HOSE ENGINE OUT/CENTER COOLER
    HOSE ENGINE OUT/CENTER COOLER
  • 39
    7081192 CLAMP HOSE (25 40MM) (WORM DRIVE)
    CLAMP HOSE (25 40MM) (WORM DRIVE)
  • 40
    2520575 WELD COOLER
    WELD COOLER
