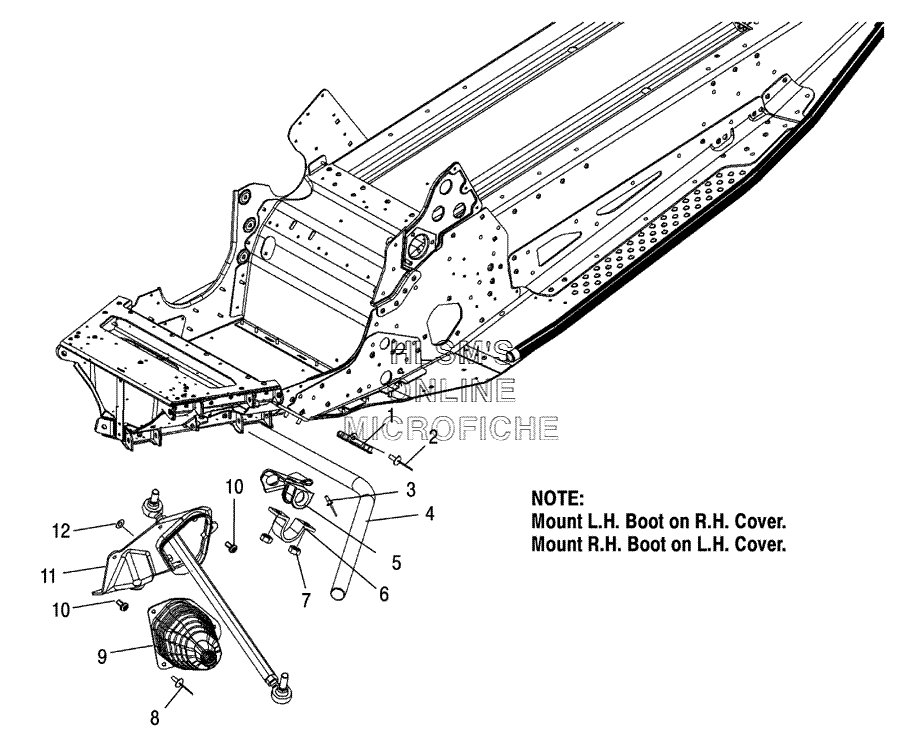

SWAY BAR для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1014662 WELD PLATE, CLAMP
    WELD PLATE, CLAMP
  • 2
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 3
    7621431 RIVET
    RIVET
  • 4
    5248794-067 BAR SWAY (.594) (BLACK)
    BAR SWAY (.594) (BLACK)
  • 5
    5435516 BUSHING SWAY BAR (9/16) (LEFT)
    BUSHING SWAY BAR (9/16) (LEFT)
  • 5
    5435517 BUSHING SWAY BAR (9/16) (RIGHT)
    BUSHING SWAY BAR (9/16) (RIGHT)
  • 6
    5134458 CLAMP SWAY BAR MOUNTING
    CLAMP SWAY BAR MOUNTING
  • 7
    7542122 NUT NYLOK
    NUT NYLOK
  • 8
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 9
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 9
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 10
    7512084 SCREW
    SCREW
  • 11
    5436574 COVER TIE ROD BOOT (LEFT)
    COVER TIE ROD BOOT (LEFT)
  • 11
    5436575 COVER TIE ROD BOOT (RIGHT)
    COVER TIE ROD BOOT (RIGHT)
  • 12
    7555904 WASHER
    WASHER
