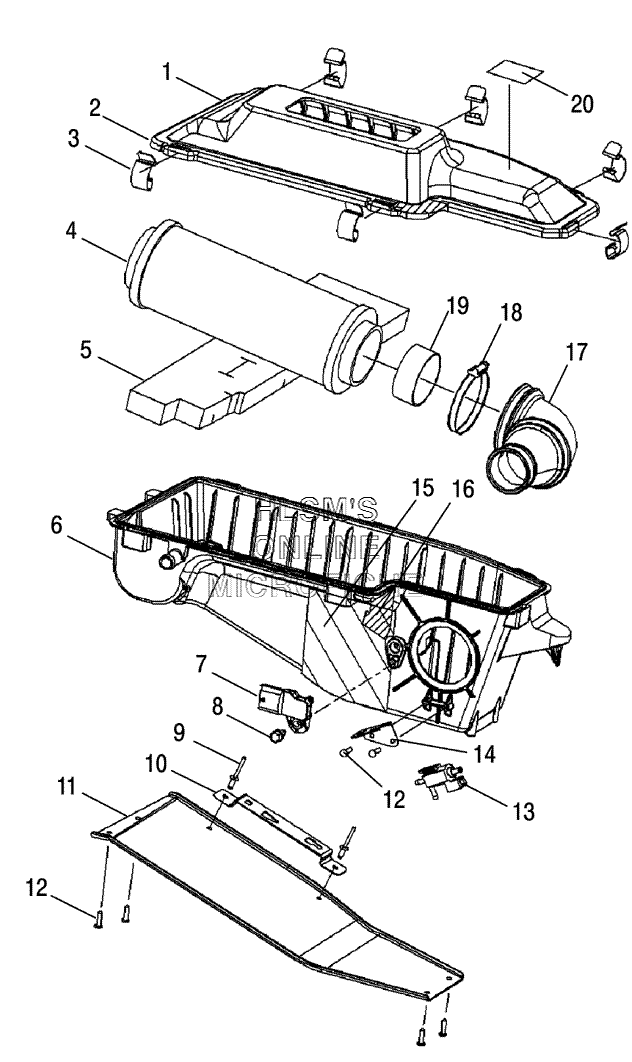

AIR INTAKE SYSTEM для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5435653 PLENUM INTAKE (UPPER)
    PLENUM INTAKE (UPPER)
  • 2
    5813005 FOIL PLENUM (UPPER)
    FOIL PLENUM (UPPER)
  • 3
    7670117 CLIP
    CLIP
  • 4
    5812801 FILTER PLENUM
    FILTER PLENUM
  • 5
    5812950 FOAM AIR BOX INTERNAL
    FOAM AIR BOX INTERNAL
  • 6
    5435592 PLENUM INTAKE (LOWER)
    PLENUM INTAKE (LOWER)
  • 7
    2410422 SENSOR-T MAP
    SENSOR-T MAP
  • 8
    7515182 SCREW
    SCREW
  • 9
    7621432 RIVET
    RIVET
  • 10
    5248706 MOUNT FUSE BOX
    MOUNT FUSE BOX
  • 11
    5249752 REINFORCEMENT PLENUM
    REINFORCEMENT PLENUM
  • 12
    7512026 SCREW
    SCREW
  • 13
    4011285 VALVE, ELECTRONIC BOOST CONTROL
    VALVE, ELECTRONIC BOOST CONTROL
  • 14
    5249291 BRACKET MOUNT, WASTEGATE VALVE
    BRACKET MOUNT, WASTEGATE VALVE
  • 15
    5813007 FABRIC PLENUM (LOWER)
    FABRIC PLENUM (LOWER)
  • 16
    5813006 FOIL PLENUM (LOWER)
    FOIL PLENUM (LOWER)
  • 17
    5412829 CONNECTOR PLENUM/TURBO
    CONNECTOR PLENUM/TURBO
  • 18
    7080707 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 19
    5334750 SLEEVE FILTER/CONNECTOR (INNER)
    SLEEVE FILTER/CONNECTOR (INNER)
  • 20
    7173902 DECAL, CAUTION AIRBOX FILTER
    DECAL, CAUTION AIRBOX FILTER
