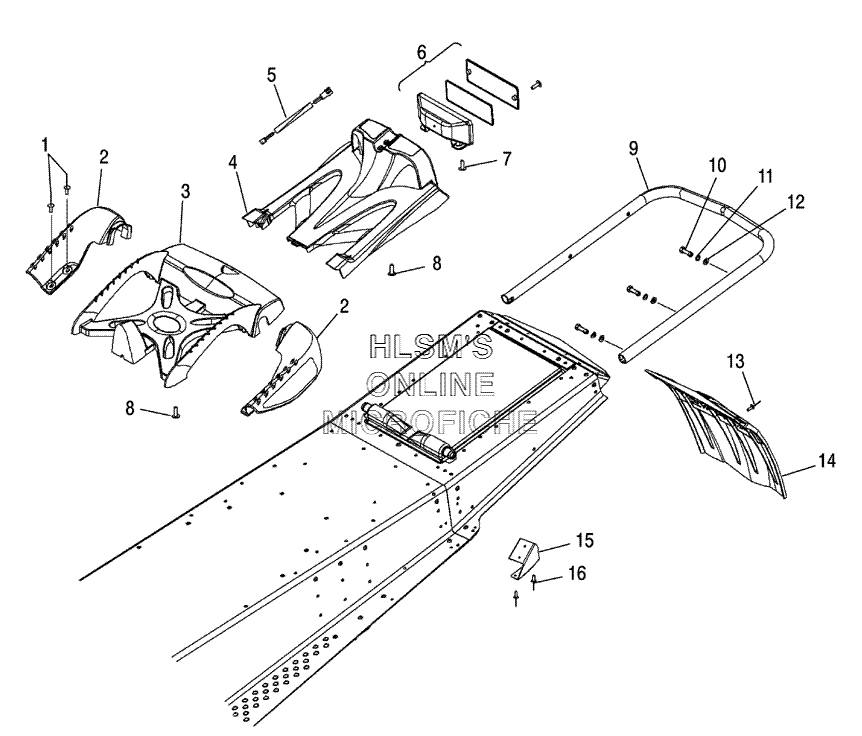

REAR CHASSIS для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска
-
№АртикулНазвание
-
17621467 RIVET, BLINDRIVET, BLIND
-
25430014-070 COVER GRIPPER/DEICER (BLACK/LEFT)COVER GRIPPER/DEICER (BLACK/LEFT)
-
25430015-070 COVER GRIPPER/DEICER (BLACK/RIGHT)COVER GRIPPER/DEICER (BLACK/RIGHT)
-
35435237-070 RACK (REAR/BLACK)RACK (REAR/BLACK)
-
42632983-070 COVER ASSY, CLOSEOFF (144/151) (BLACK) (INCL. DECALS)COVER ASSY, CLOSEOFF (144/151) (BLACK) (INCL. DECALS)
-
52410543 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
62410544 TAILLIGHT ASSYTAILLIGHT ASSY
-
64032014 LENSLENS
-
64030043 BULBBULB
-
64032015 GASKETGASKET
-
67518019 SCREW (BLACK)SCREW (BLACK)
-
77512026 SCREWSCREW
-
87518158 SCREWSCREW
-
92632988-309 BUMPER, NATURAL (REAR)BUMPER, NATURAL (REAR)
-
107517298 SCREWSCREW
-
117552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127558301 WASHER, FLATWASHER, FLAT
-
137621472 RIVETRIVET
-
145434954-1038 FLAP SNOW (BLACK/WHITE)FLAP SNOW (BLACK/WHITE)
-
155249075 BRACKET GRIPPER COVER (144/151) (LEFT)BRACKET GRIPPER COVER (144/151) (LEFT)
-
155249076 BRACKET GRIPPER COVER (144/151) (RIGHT)BRACKET GRIPPER COVER (144/151) (RIGHT)
-
167661637 RIVET, INTERLOCKRIVET, INTERLOCK
