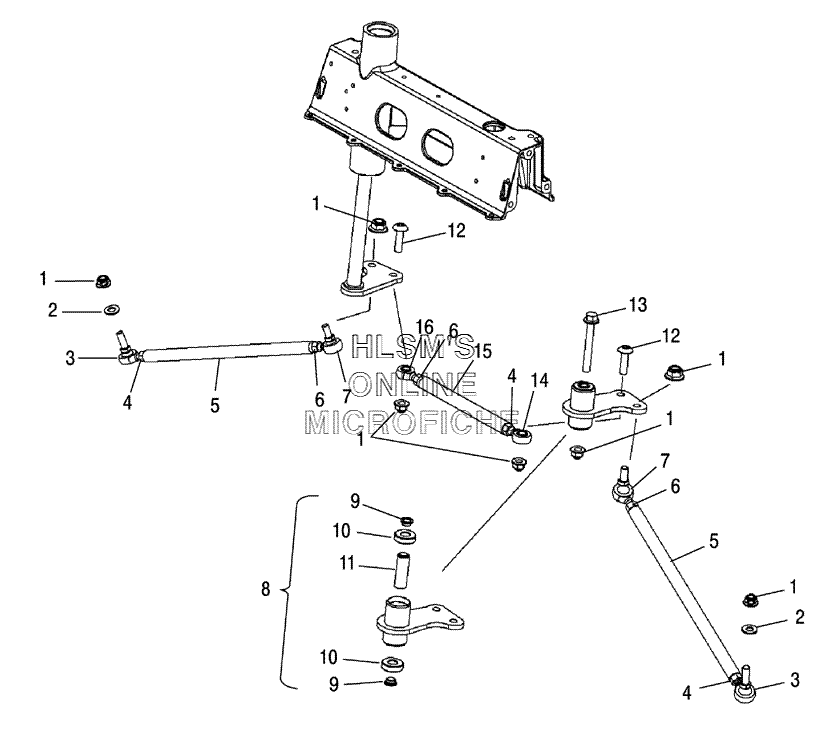

STEERING LINKAGE для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7547263 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 3
    7061057 ROD END 3/8, PL (75Ш) (RIGHT)
    ROD END 3/8, PL (75Ш) (RIGHT)
  • 4
    7542401 NUT, HEXAGON (RIGHT)
    NUT, HEXAGON (RIGHT)
  • 5
    5334667 ROD TIE
    ROD TIE
  • 6
    7542424 NUT (LEFT)
    NUT (LEFT)
  • 7
    7061055 ROD END 3/8, PL (75Ш) (LEFT)
    ROD END 3/8, PL (75Ш) (LEFT)
  • 8
    1821419 ARM IDLER ASSY
    ARM IDLER ASSY
  • 9
    5132106 BUSHING REDUCER (12MM TO .385)
    BUSHING REDUCER (12MM TO .385)
  • 10
    3514320 BEARING BALL
    BEARING BALL
  • 11
    5135452 SPACER TUBE PITMAN/IDLER ARMS
    SPACER TUBE PITMAN/IDLER ARMS
  • 12
    7518372 SCREW
    SCREW
  • 13
    7518277 SCREW, FLANGE
    SCREW, FLANGE
  • 14
    7060002 ROD END 3/8 (RIGHT)
    ROD END 3/8 (RIGHT)
  • 15
    5334325 ROD STEERING RACK
    ROD STEERING RACK
  • 16
    7060001 ROD END 3/8 (LEFT)
    ROD END 3/8 (LEFT)
