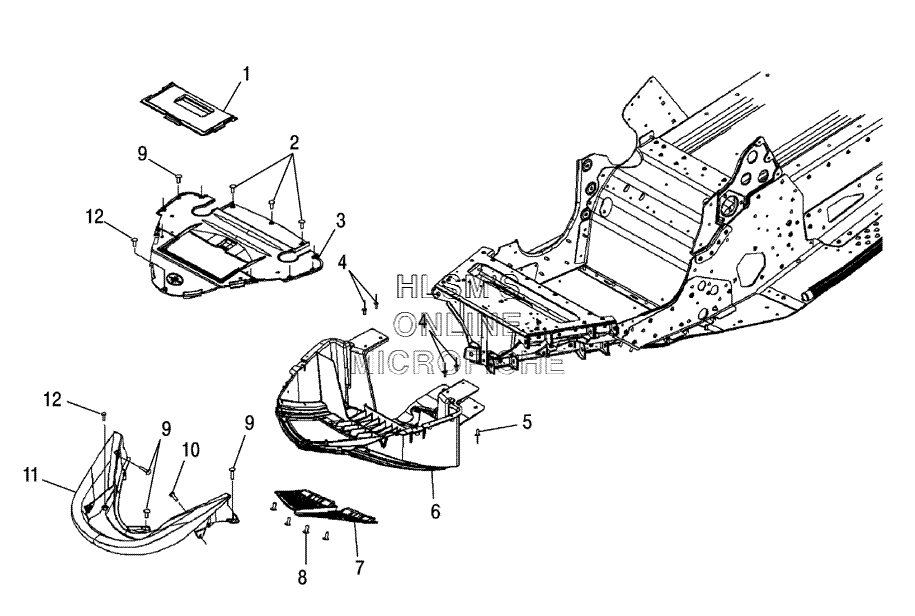

FRONT W/ BUMPER для Polaris FST Switchback (S06PS7FS) - 2006 года выпуска`
-
№АртикулНазвание
-
15433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
27518284 SCREWSCREW
-
35435249 AIR DAM RADIATORAIR DAM RADIATOR
-
47621418 RIVET, POPRIVET, POP
-
57621467 RIVET, BLINDRIVET, BLIND
-
65435075-070 NOSEPAN (BLACK)NOSEPAN (BLACK)
-
75435344-070 SCREEN NOSEPAN (LEFT/BLACK)SCREEN NOSEPAN (LEFT/BLACK)
-
87670101 CLIP, X-MAS TREECLIP, X-MAS TREE
-
97517441 SCREW (.75)SCREW (.75)
-
107512026 SCREWSCREW
-
115435794-070 BUMPER FRONT (BLACK)BUMPER FRONT (BLACK)
-
127512078 SCREWSCREW
