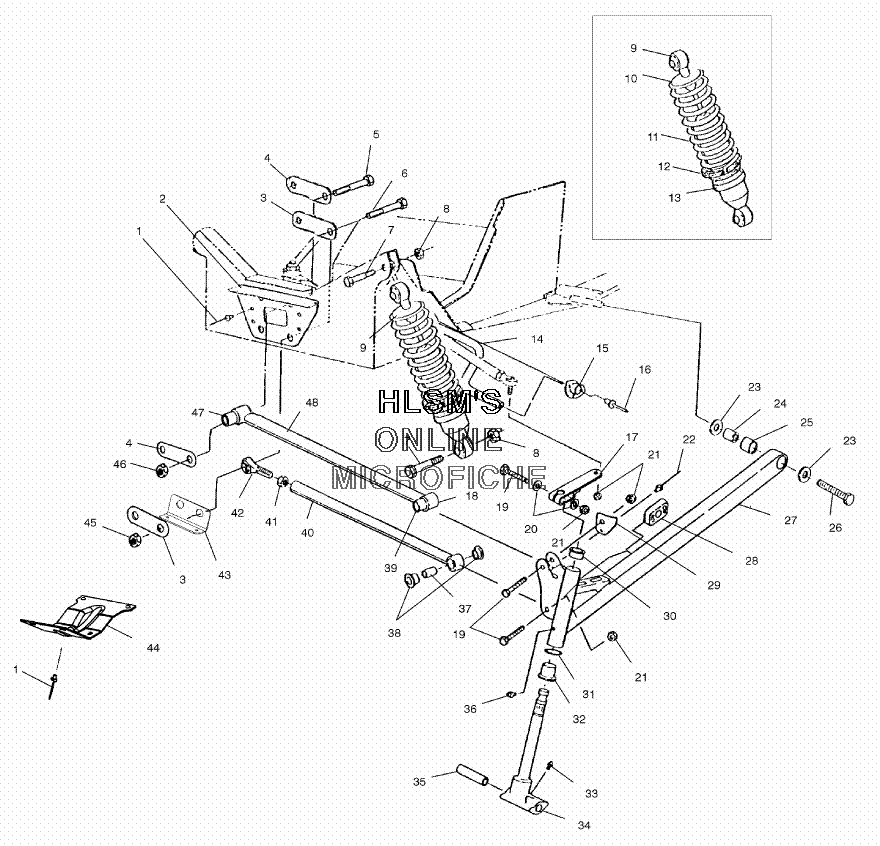

SUSPENSION - FRONT для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25242117 BRACE, .BULKHEAD (FRONT)BRACE, .BULKHEAD (FRONT)
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67512684 BOLTBOLT
-
77515415 SCREWSCREW
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041503 SHOCK, GAS, SELECT (IFS)SHOCK, GAS, SELECT (IFS)
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
125431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
131500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
145224748-067 BAR, SWAY, 5/8 (X-12) (BLACK)BAR, SWAY, 5/8 (X-12) (BLACK)
-
155432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621477 RIVETRIVET
-
175241560-385 ARM, STEERING (COLD SILVER)ARM, STEERING (COLD SILVER)
-
185411099 BUSHING, RADIUS ROD PIVOT (3/8)BUSHING, RADIUS ROD PIVOT (3/8)
-
197517583 SCREWSCREW
-
207555832 WASHERWASHER
-
217542403 NUT LOCKNUT LOCK
-
227661130 RIVET (-3/16-.214-.420)RIVET (-3/16-.214-.420)
-
237555721 WASHERWASHER
-
245010310 TUBE, BUSHINGTUBE, BUSHING
-
255410872 PIVOT, RUBBERPIVOT, RUBBER
-
267512557 BOLTBOLT
-
271821273 TRAILING, ARM ASSY. (LEFT) (COLD SILVER) (INCL. 24, 25)TRAILING, ARM ASSY. (LEFT) (COLD SILVER) (INCL. 24, 25)
-
271821274 TRAILING, ARM ASSY. (RIGHT) (COLD SILVER) (INCL. 24, 25)TRAILING, ARM ASSY. (RIGHT) (COLD SILVER) (INCL. 24, 25)
-
285432561 SLIDE, SWAYBAR, 5/8SLIDE, SWAYBAR, 5/8
-
295241569-385 STOP, STEERING (LEFT) (COLD SILVER)STOP, STEERING (LEFT) (COLD SILVER)
-
295241570-385 STOP, STEERING (RIGHT) (COLD SILVER)STOP, STEERING (RIGHT) (COLD SILVER)
-
303573909 BUSHING, FLANGEBUSHING, FLANGE
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING, FLANGEDBUSHING, FLANGED
-
337080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
346230102-067 SHAFT, SPINDLE TRAILING (BLACK)SHAFT, SPINDLE TRAILING (BLACK)
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
375010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
385431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
395411099 BUSHING, RADIUS ROD PIVOT (3/8)BUSHING, RADIUS ROD PIVOT (3/8)
-
401822383-385 WELD, RADIUS ROD CSL (LOWER)WELD, RADIUS ROD CSL (LOWER)
-
417542711 NUT, JAMNUT, JAM
-
427061052 ROD END, RADIUS (RIGHT) (LOWER)ROD END, RADIUS (RIGHT) (LOWER)
-
435242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
457542703 NUT FLEXOCKNUT FLEXOCK
-
467542503 NUT, FLEXLOCKNUT, FLEXLOCK
-
475411095 BUSHING, PIVOT, 7/16BUSHING, PIVOT, 7/16
-
481822511-385 RADIUS, ROD (UPPER)RADIUS, ROD (UPPER)
