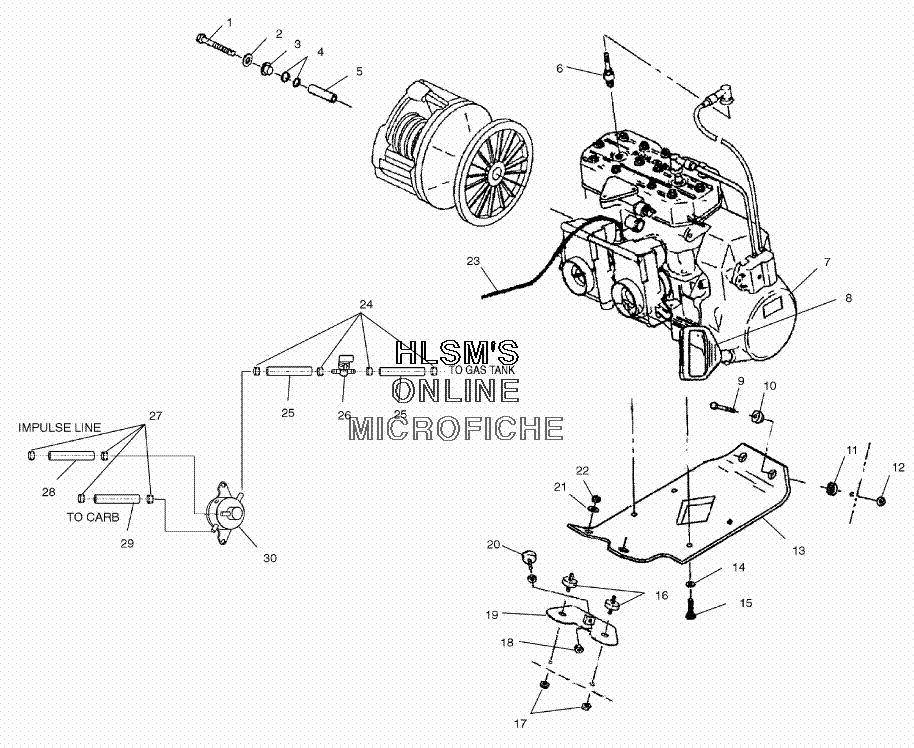

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17512565 BOLTBOLT
-
27575202 WASHER LOCKWASHER LOCK
-
35010278 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RING,O-RING,
-
55020513 SPACERSPACER
-
63070166 SPARKPLUG, RN3CSPARKPLUG, RN3C
-
73086508 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
85431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
97512530 SCREWSCREW
-
105411685 MOUNT, ENGINE RUBBER (TOP)MOUNT, ENGINE RUBBER (TOP)
-
115411686 MOUNT, ENGINE RUBBER (BOTTOM)MOUNT, ENGINE RUBBER (BOTTOM)
-
127542522 NUT, FLANGENUT, FLANGE
-
135131772 PLATE, METER MOUNTPLATE, METER MOUNT
-
147553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
157512539 BOLTBOLT
-
163110061 MOUNT, ENGINEMOUNT, ENGINE
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
187542414 NUT, HEXNUT, HEX
-
191012608 LIMITER, TORQUE, TWIN ZLIMITER, TORQUE, TWIN Z
-
203110063 STOP, TORQUE, COARSE (1.94 DIA)STOP, TORQUE, COARSE (1.94 DIA)
-
217555893 WASHER, FLATWASHER, FLAT
-
227542451 NUT, NYLOKNUT, NYLOK
-
237080770 CABLE, THROT, SINGLE, RACK CARBURETORCABLE, THROT, SINGLE, RACK CARBURETOR
-
247080307 CLAMP, HOSECLAMP, HOSE
-
258350018-600 TUBING, ETHER ERETHANE (160 CM)TUBING, ETHER ERETHANE (160 CM)
-
267052248 VALVE, FUEL, PLASTIC INLINE (1/4")VALVE, FUEL, PLASTIC INLINE (1/4")
-
277080003 CLAMP, HOSECLAMP, HOSE
-
288450040-600 FUEL LINE (1/4 ID, 600 CM.)FUEL LINE (1/4 ID, 600 CM.)
-
298350017-600 FUEL, LINE ETHER (RED) (5/16")FUEL, LINE ETHER (RED) (5/16")
