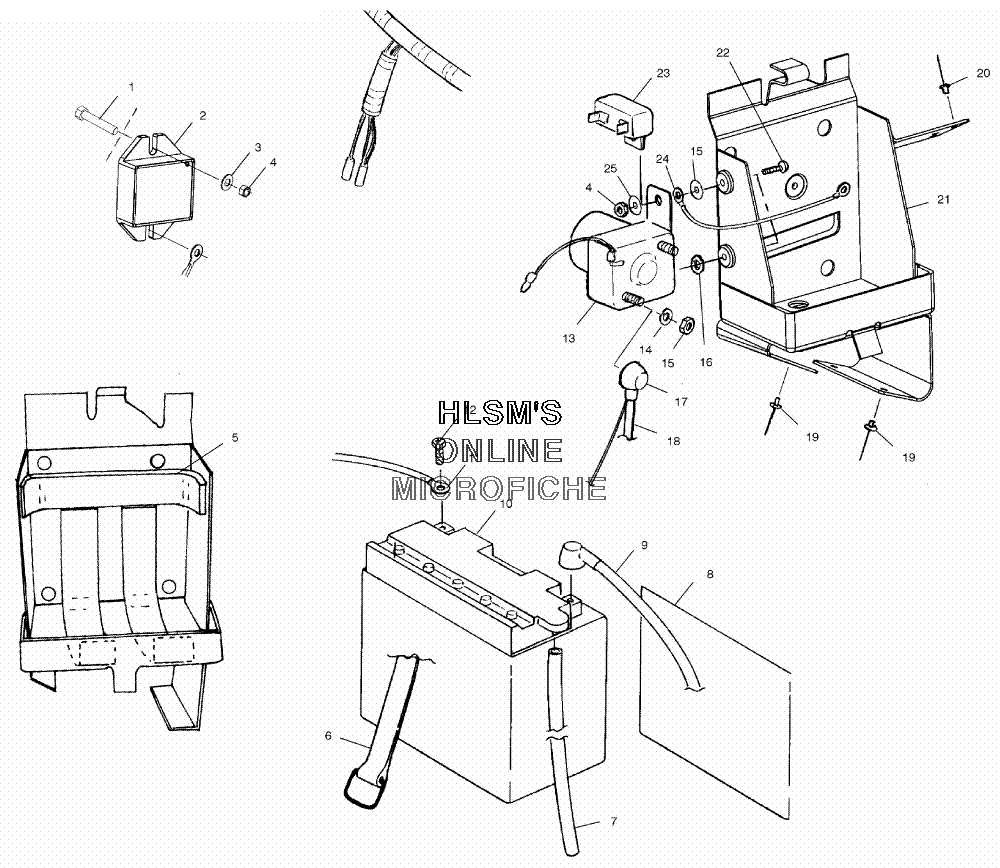

BATTERY BOX для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517263 SCREW, HX/SEMS
    SCREW, HX/SEMS
  • 2
    4010355 REGULATOR, AC/DC
    REGULATOR, AC/DC
  • 3
    7555746 BURR, RIVET
    BURR, RIVET
  • 4
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 5
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 6
    2450020 STRAP ASSY., BATTERY HOLD.
    STRAP ASSY., BATTERY HOLD.
  • 7
    5433681 TUBE, BATTERY VENT (400 MM)
    TUBE, BATTERY VENT (400 MM)
  • 8
    8360018-75 TAPE, FOIL (6X7.5")
    TAPE, FOIL (6X7.5")
  • 9
    2460393 CABLE ASSY., SOLENOID
    CABLE ASSY., SOLENOID
  • 10
    4140006 BATTERY
    BATTERY
  • 11
    4010114 CABLE, BATTERY (BLACK) (11")
    CABLE, BATTERY (BLACK) (11")
  • 12
    2200361 BATTERY BOLT, KIT (SHORT)
    BATTERY BOLT, KIT (SHORT)
  • 16
    7571602 WASHER
    WASHER
  • 17
    5410346 INSUL.CABLE SOL.
    INSUL.CABLE SOL.
  • 18
    4010190 CABLE (RED) (25")
    CABLE (RED) (25")
  • 19
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 20
    7621418 POP RIVET
    POP RIVET
  • 21
    1012799-067 BATTERY BOX (BLACK)
    BATTERY BOX (BLACK)
  • 22
    7512027 SCREW
    SCREW
  • 23
    2434008 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 24
    4010108 WIRE, JUMPER, SOLENOID/BATTERY (8.5")
    WIRE, JUMPER, SOLENOID/BATTERY (8.5")
  • 25
    7558201 WASHER, FLAT
    WASHER, FLAT
