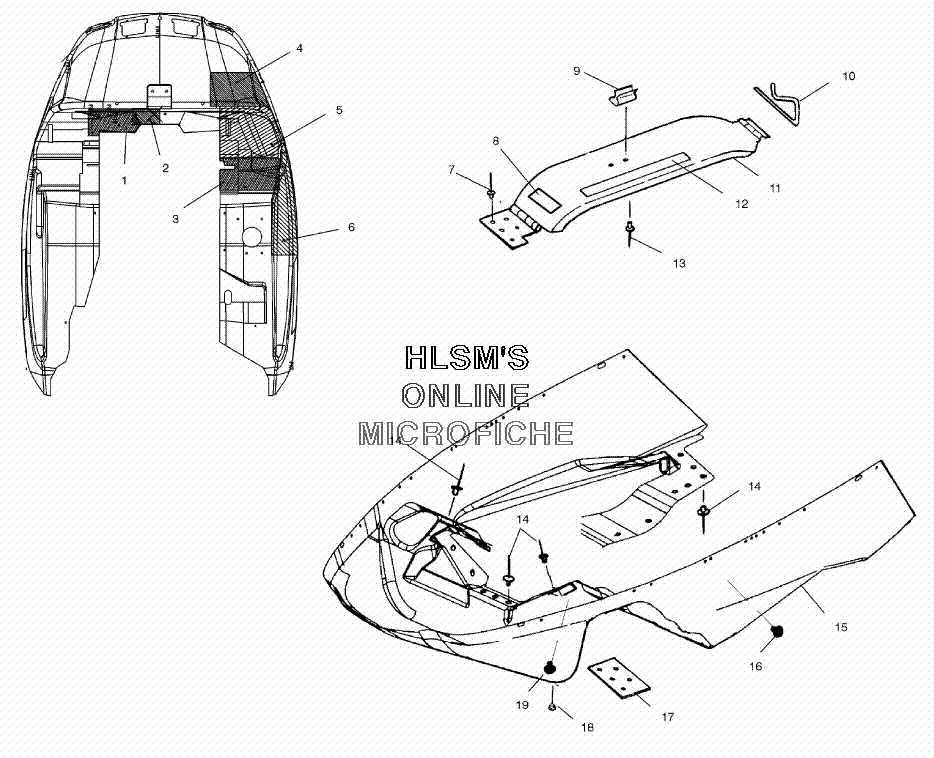

NOSEPAN ASSEMBLY #2 для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
15810493 TAPE, FOIL, PAN #3TAPE, FOIL, PAN #3
-
25812061 FOIL, TAPE 4X4FOIL, TAPE 4X4
-
38360018-09 TAPE, FOIL, 6X9 INCHESTAPE, FOIL, 6X9 INCHES
-
45811998 FOIL, TAPE, PANFOIL, TAPE, PAN
-
55811723 FOIL, TAPE #6FOIL, TAPE #6
-
65810497 TAPE, FOIL, PAN #7TAPE, FOIL, PAN #7
-
77621402 POP RIVETPOP RIVET
-
87170049 DECAL, TRBLE SHOOT (XTRA-12)DECAL, TRBLE SHOOT (XTRA-12)
-
95222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
107080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
111012412 GUARD ASSY., CLUTCH (SP)GUARD ASSY., CLUTCH (SP)
-
127075350 DECAL 97-99 ENGINE/CLUTCHDECAL 97-99 ENGINE/CLUTCH
-
137621429 RIVETRIVET
-
147621467 RIVET, BLINDRIVET, BLIND
-
155411639 NOSEPAN, LIQ W/SIDE COOLER, COMMNOSEPAN, LIQ W/SIDE COOLER, COMM
-
165410344 PLUGPLUG
-
175211722 PLATE, BACKERPLATE, BACKER
-
187080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
195410820 PLUG, HOLEPLUG, HOLE
