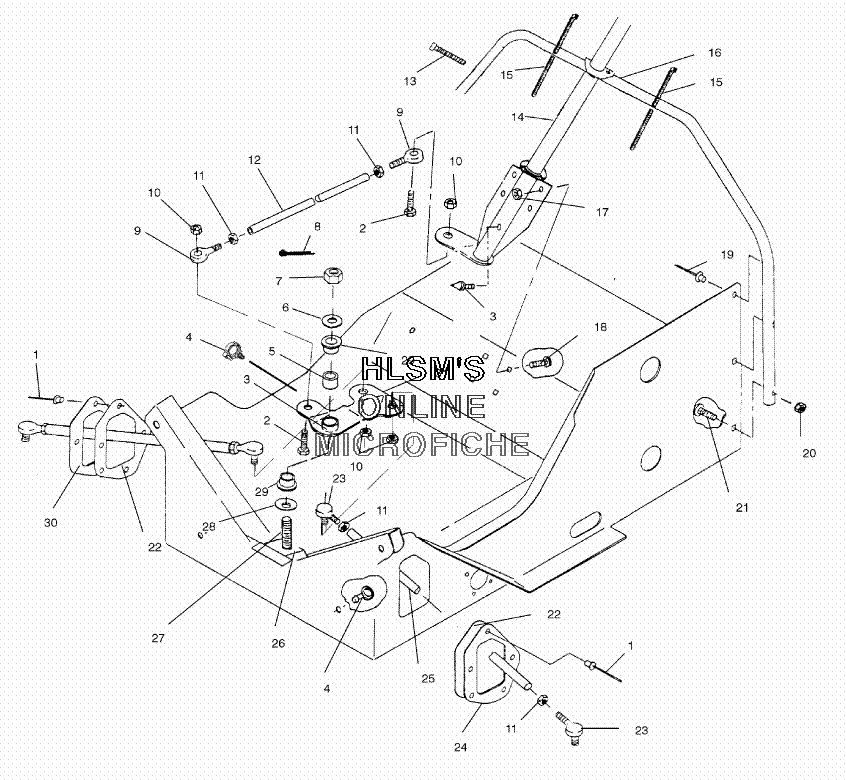

STEERING ASSEMBLY для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17621340 RIVETRIVET
-
27512404 BOLTBOLT
-
37080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
44020139 CLIP, PLASTICCLIP, PLASTIC
-
55010463 BUSHINGBUSHING
-
67555721 WASHERWASHER
-
77542703 NUT FLEXOCNUT FLEXOC
-
87661203 PIN COTTERPIN COTTER
-
97060164 ROD END (LEFT)ROD END (LEFT)
-
97060165 ROD END (RIGHT)ROD END (RIGHT)
-
107542403 NUT LOCKNUT LOCK
-
117542424 NUT (LEFT)NUT (LEFT)
-
117542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
125332712 ROD, DRAG LINKROD, DRAG LINK
-
137080138 CABLE TIECABLE TIE
-
157080804 CABLE TIE RELEASABLE (5 1/2")CABLE TIE RELEASABLE (5 1/2")
-
161012887-067 STEERING HOOP SHORT (BLACK)STEERING HOOP SHORT (BLACK)
-
177542303 NUT FLEX LOCKNUT FLEX LOCK
-
187517428 BOLTBOLT
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
207542103 NUT, FLEXLOCNUT, FLEXLOC
-
217512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
225411122 BOOT, TIEROD XTRA (LEFT)BOOT, TIEROD XTRA (LEFT)
-
225411123 BOOT, TIEROD XTRA (RIGHT)BOOT, TIEROD XTRA (RIGHT)
-
237061005 ROD END, HI-ANGLE PRO (LEFT) (3/8)ROD END, HI-ANGLE PRO (LEFT) (3/8)
-
237060174 ROD, END, HI-ANGLE (RIGHT) (3/8)ROD, END, HI-ANGLE (RIGHT) (3/8)
-
245211454-067 PLATE, BOOTSEAT (BLACK)PLATE, BOOTSEAT (BLACK)
-
255020859 ROD, TIEROD, TIE
-
265630563 BLOCK, STEERING (CAST)BLOCK, STEERING (CAST)
-
277512682 BOLTBOLT
-
287555735 WASHER, WAVEWASHER, WAVE
-
293563907 BUSHINGBUSHING
-
305211453-067 PLATE, BOOTSEAL (BLACK) (RIGHT)PLATE, BOOTSEAL (BLACK) (RIGHT)
-
311822286 STEERING ASSY. (CENTER) (INCL. 3, 29)STEERING ASSY. (CENTER) (INCL. 3, 29)
