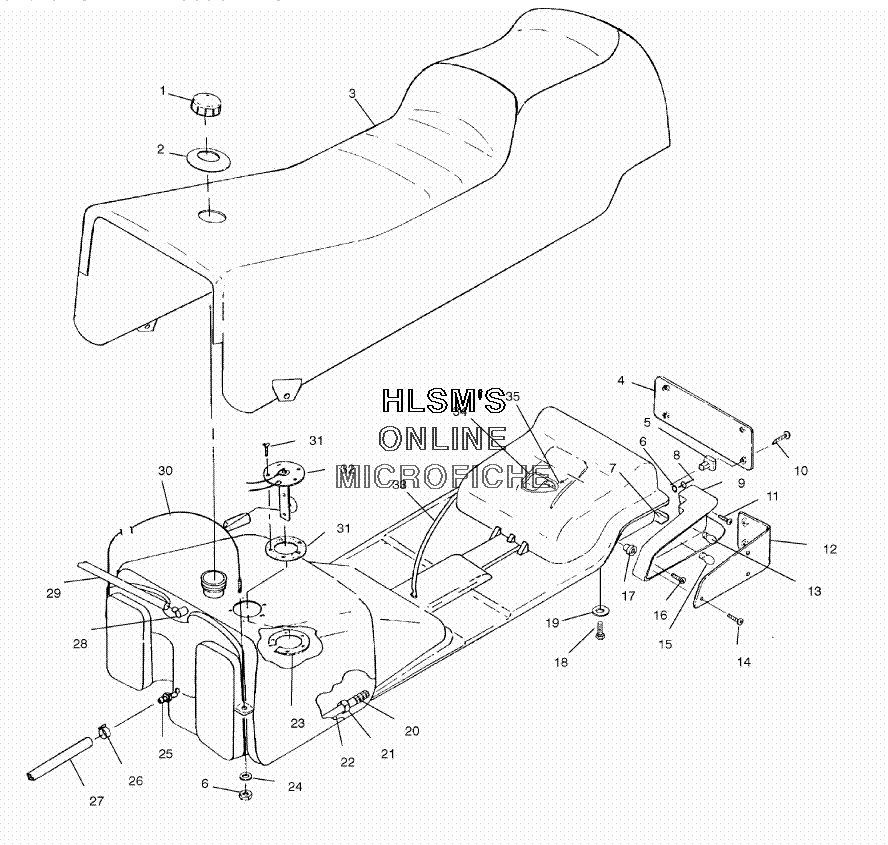

SEAT W/ GAS TANK ASSEMBLY для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2511226 CAP, FUELTANK, W/GASKET
    CAP, FUELTANK, W/GASKET
  • 1
    5810513 GASKET, GAS CAP
    GASKET, GAS CAP
  • 2
    5410842 GROMMET, FUELTANK
    GROMMET, FUELTANK
  • 3
    2682747 SEAT, ASSY. TOUR (INCL. 3, 4, 17, 20, 22, 25, 28)
    SEAT, ASSY. TOUR (INCL. 3, 4, 17, 20, 22, 25, 28)
  • 3
    2682748 SEAT COVER, ASSY. TOUR
    SEAT COVER, ASSY. TOUR
  • 4
    5432008 REFLECTOR, SEAT (CENTER)
    REFLECTOR, SEAT (CENTER)
  • 5
    7546908 NUT
    NUT
  • 6
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 7
    1012838-067 BRACKET, ASSY. SEAT MOUNT W/CLIP (BLACK)
    BRACKET, ASSY. SEAT MOUNT W/CLIP (BLACK)
  • 8
    7661046 RIVET, POP (3/16 .376, .500)
    RIVET, POP (3/16 .376, .500)
  • 9
    5432002 HOUSING, LENS (LEFT)
    HOUSING, LENS (LEFT)
  • 9
    5432003 HOUSING, LENS (RIGHT)
    HOUSING, LENS (RIGHT)
  • 10
    7511840 SCREW
    SCREW
  • 11
    7522004 SCREW, SELF TAP
    SCREW, SELF TAP
  • 12
    5432031 LENS (LEFT)
    LENS (LEFT)
  • 12
    5432032 LENS (RIGHT)
    LENS (RIGHT)
  • 13
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 14
    7512054 SCREW
    SCREW
  • 15
    4032084 BULB, TAILLIGHT.
    BULB, TAILLIGHT.
  • 16
    7511954 SCREW
    SCREW
  • 17
    7541901 NUT, WELL
    NUT, WELL
  • 18
    7512242 SCREW
    SCREW
  • 19
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 20
    7052243 FUEL PICKUP, W/FILTER
    FUEL PICKUP, W/FILTER
  • 21
    7080402 RING, COMPRES
    RING, COMPRES
  • 22
    8350019-1525 TUBING
    TUBING
  • 23
    5244067 FLANGE, FUEL TANK MOUNTING
    FLANGE, FUEL TANK MOUNTING
  • 24
    7555746 BURR, RIVET
    BURR, RIVET
  • 25
    7052023 FITTING, OUTLET
    FITTING, OUTLET
  • 26
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 27
    8350018-600 TUBING, ETHER ERETHANE (160 CM)
    TUBING, ETHER ERETHANE (160 CM)
  • 28
    7052095 FITTING (90 DEG, 1/8)
    FITTING (90 DEG, 1/8)
  • 29
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
  • 30
    7080559 CABLE, TANK, RETENTION
    CABLE, TANK, RETENTION
  • 31
    2410012 HARDWEAR PKG, SEND.UNIT
    HARDWEAR PKG, SEND.UNIT
  • 32
    3280227 SENDER, FUEL, LEVEL W/GASKET
    SENDER, FUEL, LEVEL W/GASKET
  • 33
    2460524 HARNESS, TAILLIGHT (TOUR)
    HARNESS, TAILLIGHT (TOUR)
  • 34
    5243593 RETAINER, CLIP TOOL POUCH TOUR
    RETAINER, CLIP TOOL POUCH TOUR
  • 35
    7621467 RIVET, BLIND
    RIVET, BLIND
