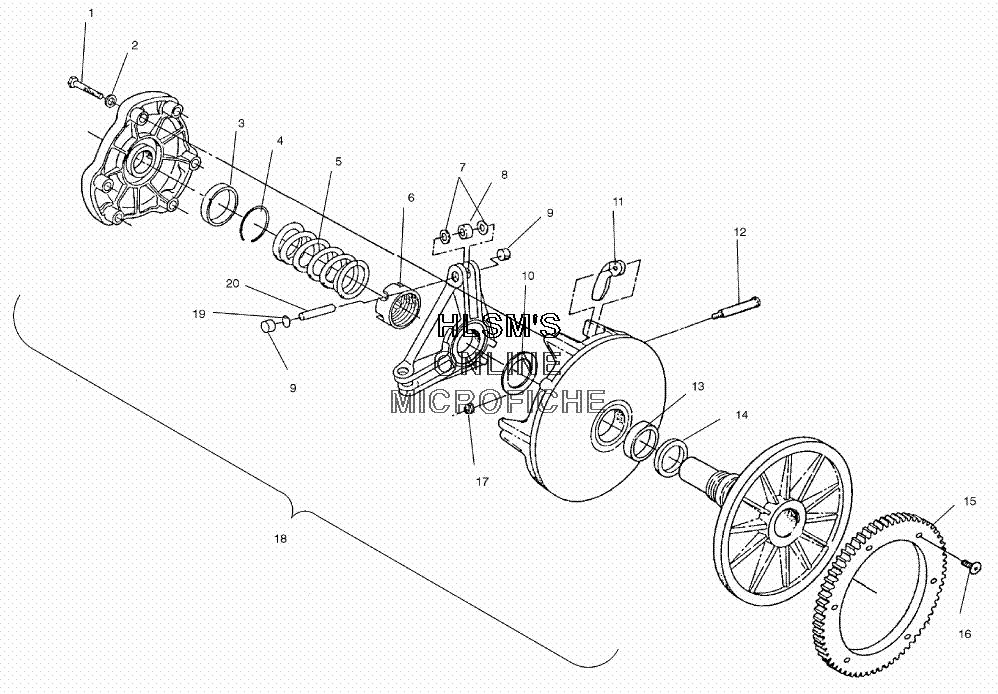

CLUTCH - DRIVE для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041148 SPRING, CLUTCH (GOLD)SPRING, CLUTCH (GOLD)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER (.050)SPACER (.050)
-
105210753 SPACER (.032)SPACER (.032)
-
105242981 SPACER (.025)SPACER (.025)
-
105210752 SPACER (.020)SPACER (.020)
-
111321528 WT/BUSH.ASSY. (10M)WT/BUSH.ASSY. (10M)
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155131062 GEAR, RINGGEAR, RING
-
167515351 BOLT, RING GEARBOLT, RING GEAR
-
177541906 NUT FLEXLOCNUT FLEXLOC
-
181321737 CLUTCH, ES, BASIC #88 (DRIVE) (INCL. ALL LESS 5, 11)CLUTCH, ES, BASIC #88 (DRIVE) (INCL. ALL LESS 5, 11)
-
192200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
205133079 PIN, ROLLER, SBN (1")PIN, ROLLER, SBN (1")
