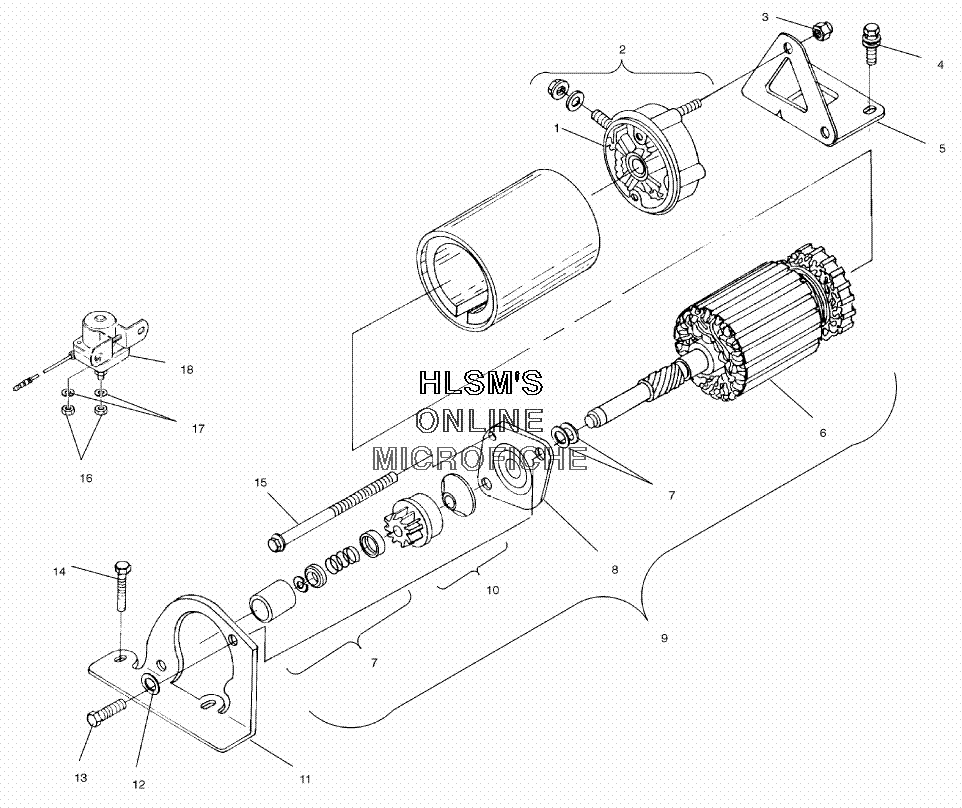

STARTING MOTOR для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
12200759 BRUSH AND SPRING, KITBRUSH AND SPRING, KIT
-
22200758 COMMUTATOR CAP ASSY. [INCL. 1]COMMUTATOR CAP ASSY. [INCL. 1]
-
37542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
47516815 SCREWSCREW
-
55240956 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
62200756 ARMATURE ASSY., KITARMATURE ASSY., KIT
-
72200755 DRIVE HDWE., KITDRIVE HDWE., KIT
-
82200757 DRIVECAP ASSY., KITDRIVECAP ASSY., KIT
-
94170006 MOTOR, STARTER (DOMESTIC)MOTOR, STARTER (DOMESTIC)
-
102200754 DRIVE ASSY., KITDRIVE ASSY., KIT
-
115241271 BRACKET, STARTER (FRONT)BRACKET, STARTER (FRONT)
-
127552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
137512492 SCREWSCREW
-
147516730 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
152200753 SCREW, KITSCREW, KIT
-
163082939 NUTNUT
-
173080077 WASHER SPRINGWASHER SPRING
-
183083211 SWITCH, MAGNETIC (INCL. 16, 17)SWITCH, MAGNETIC (INCL. 16, 17)
Все узлы модели:
- BACKREST ASSEMBLY
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP/FUEL PUMP
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- REVERSE LINKAGE
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- • STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- TUNNEL ASSEMBLY
- WATER PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
