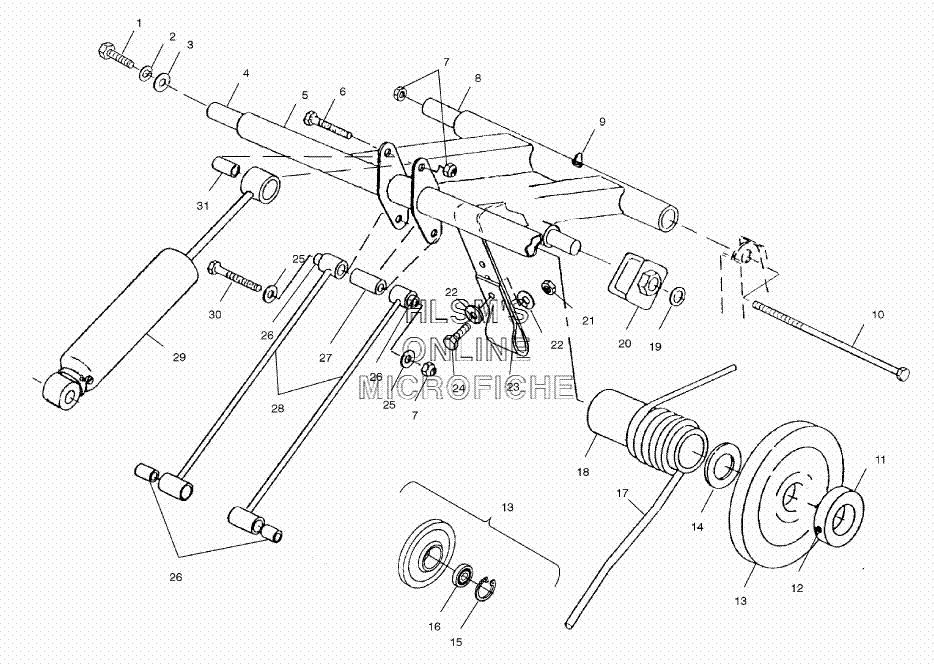

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45020845 SHAFT, TORQUE (REAR/UPPER)SHAFT, TORQUE (REAR/UPPER)
-
51541152-067 ARM, TORQUE (REAR/BLACK)ARM, TORQUE (REAR/BLACK)
-
67512410 BOLTBOLT
-
77542411 NUT LOCKNUT LOCK
-
85333536 SHAFTSHAFT
-
97080433 ZERK, FITTINGZERK, FITTING
-
107517232 SCREWSCREW
-
115010404 COLLAR, BEARING LOCKCOLLAR, BEARING LOCK
-
127512257 SCREW SETSCREW SET
-
131543023 WHEEL, CARRIERWHEEL, CARRIER
-
147555787 WASHER, REVERSEWASHER, REVERSE
-
157718407 RING-RETAININGRING-RETAINING
-
163514303 BEARINGBEARING
-
177041465-067 SPRING, TORSION (LEFT) (.437) (STD)SPRING, TORSION (LEFT) (.437) (STD)
-
177041466-067 SPRING, TORSION (RIGHT) (.437) (STD.)SPRING, TORSION (RIGHT) (.437) (STD.)
-
177041461-067 SPRING, TORSION (LEFT) (.421) (OPT.)SPRING, TORSION (LEFT) (.421) (OPT.)
-
177041462-067 SPRING, TORSION (LEFT) (.421) (OPT.)SPRING, TORSION (LEFT) (.421) (OPT.)
-
177041463-067 SPRING, TORSION (LEFT) (.406) (OPT.)SPRING, TORSION (LEFT) (.406) (OPT.)
-
177041464-067 SPRING, TORSION (RIGHT) (.406) (OPT.)SPRING, TORSION (RIGHT) (.406) (OPT.)
-
185431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
197080394 CLIPCLIP
-
205431168 ROLLER, SPRING ADJUSTROLLER, SPRING ADJUST
-
217542324 NUTNUT
-
227556175 WASHERWASHER
-
235411062 STRAP, LIMITER (REAR)STRAP, LIMITER (REAR)
-
247512310 SCREWSCREW
-
257555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
265020561 BUSHING, PIVOT TUBEBUSHING, PIVOT TUBE
-
275333559 SPACERSPACER
-
281541021-067 ROD, SHOCK (133'')ROD, SHOCK (133'')
-
297041438 SHOCK, GAS TRACK (REAR)SHOCK, GAS TRACK (REAR)
-
307515472 BOLTBOLT
-
315010422 BUSHINGBUSHING
