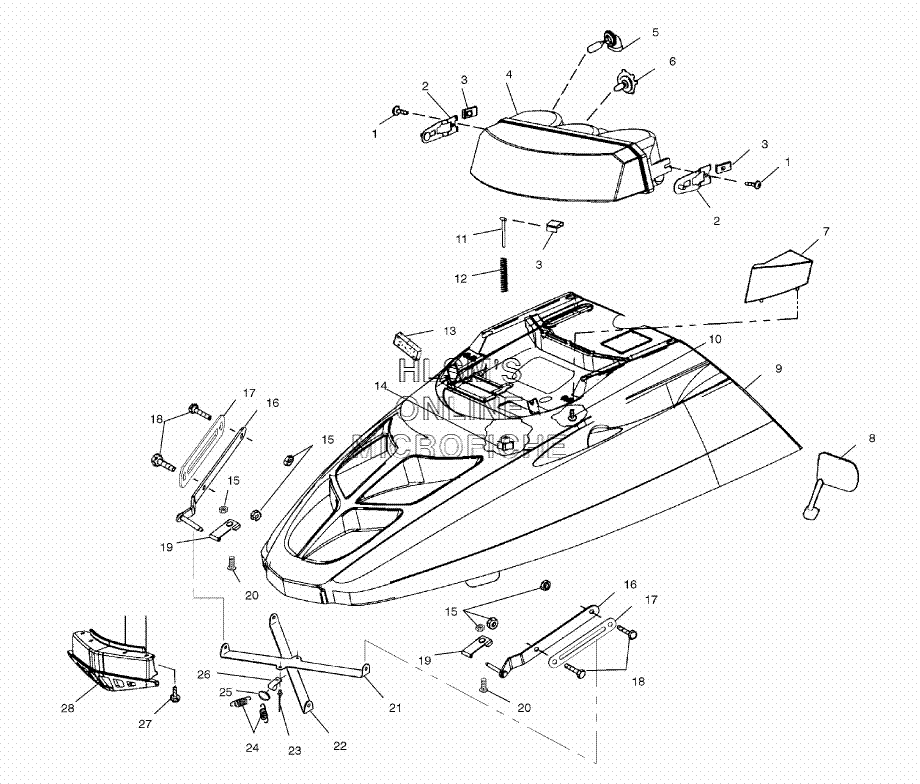

HOOD ASSEMBLY W/ HEADLIGHT для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска`
-
№АртикулНазвание
-
17515107 BOLTBOLT
-
21011944-067 MOUNT, HEADLIGHTMOUNT, HEADLIGHT
-
37670057 NUT, SPEEDOMETERNUT, SPEEDOMETER
-
42433016 HEADLAMP ASSY., THREE BULB (INCL. BULBS)HEADLAMP ASSY., THREE BULB (INCL. BULBS)
-
54010253 BULB, HEADLIGHT (50 WATT)BULB, HEADLIGHT (50 WATT)
-
62870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
75431855 LENS, REFLECTOR (CLEAR/LEFT)LENS, REFLECTOR (CLEAR/LEFT)
-
75431856 LENS, REFLECTOR (CLEAR/RIGHT)LENS, REFLECTOR (CLEAR/RIGHT)
-
82632353 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
82632354 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
87556088 WASHERWASHER
-
87546703 NUT, METRICNUT, METRIC
-
92632170-341 HOOD ASSY. (SONIC BLUE) (INCL. FOAM/FOIL)HOOD ASSY. (SONIC BLUE) (INCL. FOAM/FOIL)
-
107511953 SCREWSCREW
-
117517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
127041308 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
135811687 FOAM-HEADLIGHT SEAL W/PSAFOAM-HEADLIGHT SEAL W/PSA
-
147080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
157542122 NUT, LOCKNUT, LOCK
-
161012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
161012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
175242948 PLATE, BOLTPLATE, BOLT
-
187515184 BOLTBOLT
-
195244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
207512193 BOLTBOLT
-
215242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
225242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
237661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
247041732 SPRING, EXT.SPRING, EXT.
-
257041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
267080372 CLAMP, RETAINERCLAMP, RETAINER
-
277517441 SCREWSCREW
-
285432931 SCREEN, HYBRIDSCREEN, HYBRID
