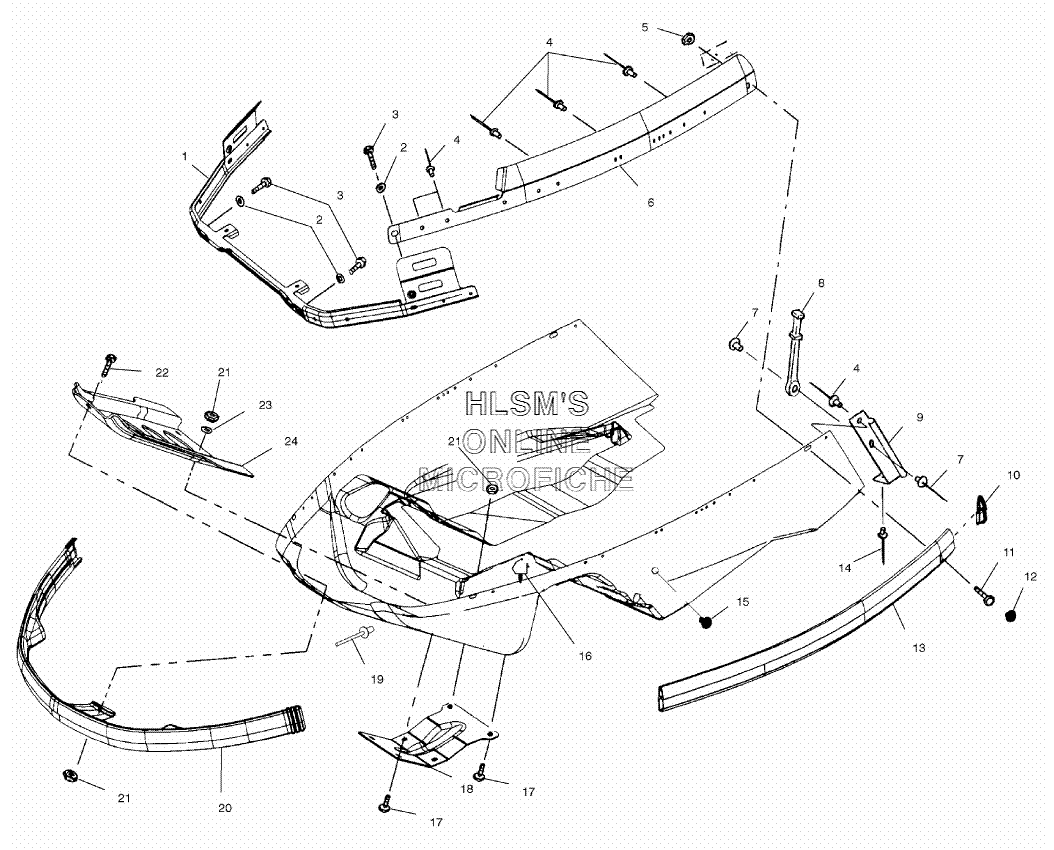

NOSEPAN ASSEMBLY #1 для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска
-
№АртикулНазвание
-
11012783-067 BRACE HINGE (BLACK)BRACE HINGE (BLACK)
-
27552801 LOCK WASHERLOCK WASHER
-
37512276 BOLTBOLT
-
47621402 POP, RIVETPOP, RIVET
-
57542103 NUT, LOCKNUT, LOCK
-
65243005 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
65243006 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
-
77621601 RIVETRIVET
-
85410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
95220522-067 BRACE, PAN (LEFT)BRACE, PAN (LEFT)
-
95220523-067 BRACE, PAN (RIGHT)BRACE, PAN (RIGHT)
-
105432887 CAP, BUMPER (LEFT/BLACK)CAP, BUMPER (LEFT/BLACK)
-
105432888 CAP, BUMPER (RIGHT/BLACK)CAP, BUMPER (RIGHT/BLACK)
-
117515166 SCREWSCREW
-
127080416 PLUG, HOLEPLUG, HOLE
-
135243460-067 EXTRUSION, BUMPER FORMED (LEFT/BLACK)EXTRUSION, BUMPER FORMED (LEFT/BLACK)
-
135243461-067 EXTRUSION, BUMPER FORMED (RIGHT/BLACK)EXTRUSION, BUMPER FORMED (RIGHT/BLACK)
-
147621432 RIVETRIVET
-
155410344 PLUGPLUG
-
167670109 CLIP, ROUTINGCLIP, ROUTING
-
177512193 BOLTBOLT
-
185242575-067 BRACE, PAN (LOWER/BLACK)BRACE, PAN (LOWER/BLACK)
-
197621463 RIVETRIVET
-
205432891-070 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
217542122 NUT, LOCKNUT, LOCK
-
227517371 SCREWSCREW
-
237558301 WASHERWASHER
-
245243820 BRACE, PAN (UPPER)BRACE, PAN (UPPER)
