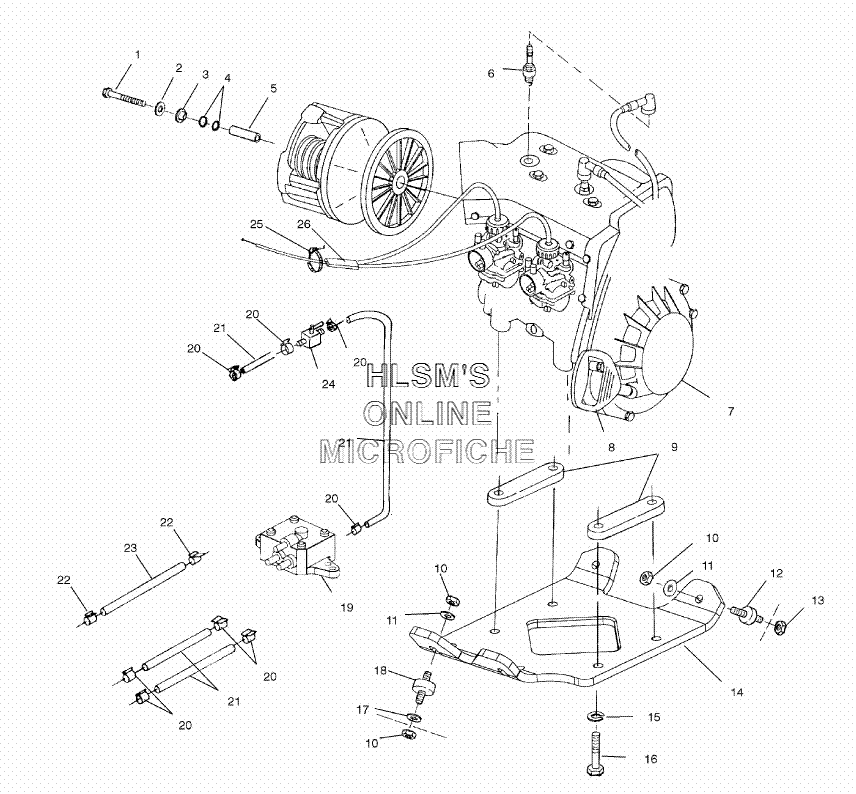

ENGINE MOUNTING W/ SHORT BLOCK для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска`
-
№АртикулНазвание
-
17517776 SCREWSCREW
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAININGWASHER, CLUTCH RETAINING
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
73085618 SHORT BLOCK ASSY.SHORT BLOCK ASSY.
-
85431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
95243195 SPACERM, ENGINE (.50)SPACERM, ENGINE (.50)
-
107547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
117555893 WASHERWASHER
-
123021099 MOUNT, ENGINEMOUNT, ENGINE
-
137542451 NUT, NYLOCKNUT, NYLOCK
-
145132001 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
157553101 WASHER, LOCKWASHER, LOCK
-
167517442 BOLTBOLT
-
177555915 WASHER, FLATWASHER, FLAT
-
183110062 MOUNT, ENGINEMOUNT, ENGINE
-
193085902 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
207080307 CLAMPCLAMP
-
218350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
227080003 CLAMP, HOSECLAMP, HOSE
-
238450040-600 FUEL LINE (1/4 ID 600 CM.)FUEL LINE (1/4 ID 600 CM.)
-
247052248 VALVE, FUEL PLASTIC INLINE (1/4'')VALVE, FUEL PLASTIC INLINE (1/4'')
-
257080138 CABLE TIECABLE TIE
-
267080888 CABLE, THROTTLECABLE, THROTTLE
