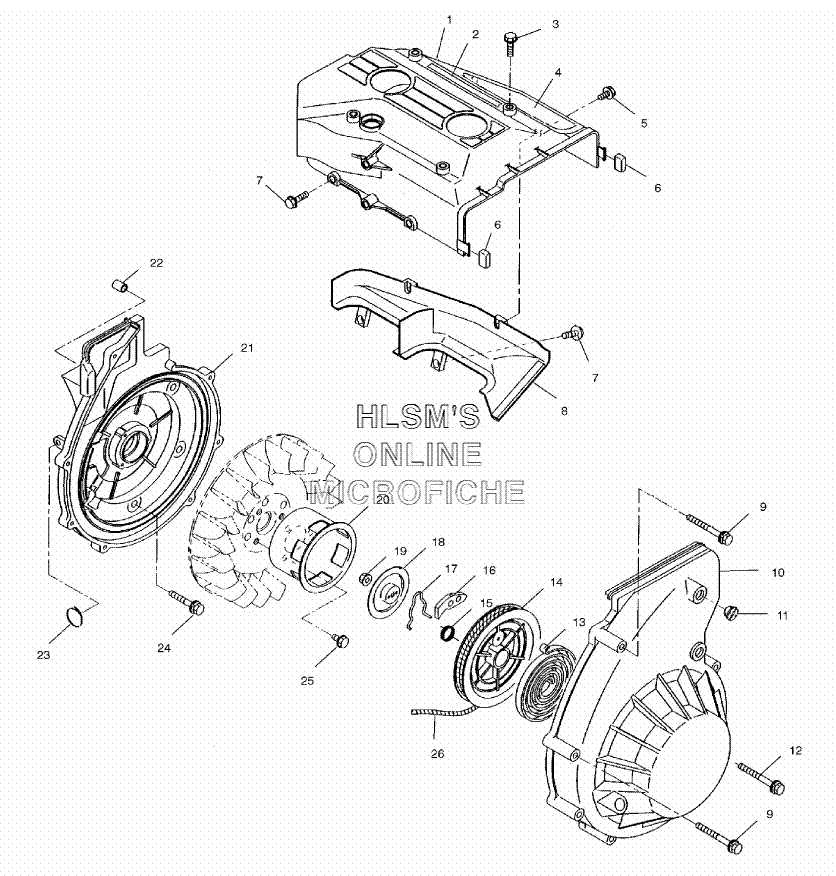

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска`
-
№АртикулНазвание
-
13086991 BAFFLE, 1 CYLINDERBAFFLE, 1 CYLINDER
-
27079511 DECAL, ENGINE SHROUD ''POLARIS''DECAL, ENGINE SHROUD ''POLARIS''
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
47079510 DECAL-''550'' ENGINE SHROUDDECAL-''550'' ENGINE SHROUD
-
53085693 BOLT, FLANGEBOLT, FLANGE
-
63085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
73085694 BOLT, FLANGEBOLT, FLANGE
-
83085691 BAFFLE #2, CYLINDERBAFFLE #2, CYLINDER
-
93083550 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103087134 STARTER, RECOIL (INCL. 13-19, 26)STARTER, RECOIL (INCL. 13-19, 26)
-
103087135 CASE, STARTERCASE, STARTER
-
113086792 PLUG, RUBBERPLUG, RUBBER
-
123082030 BOLTBOLT
-
133083376 SPRING, SPIRALSPRING, SPIRAL
-
143083377 REEL, REWINDREEL, REWIND
-
153083463 SPRING, RETURNSPRING, RETURN
-
163083378 RATCHETRATCHET
-
173083379 SPRING, FRICTIONSPRING, FRICTION
-
183083464 PLATE, FRICTIONPLATE, FRICTION
-
193083381 NUT, FLANGENUT, FLANGE
-
203085685 PULLEY, STARTINGPULLEY, STARTING
-
213087020 HOUSING, BLOWERHOUSING, BLOWER
-
223084857 PIN, STRAIGHTPIN, STRAIGHT
-
233084823 BAND, WIREBAND, WIRE
-
243084225 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
253085688 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
263085723 ROPE, STARTERROPE, STARTER
