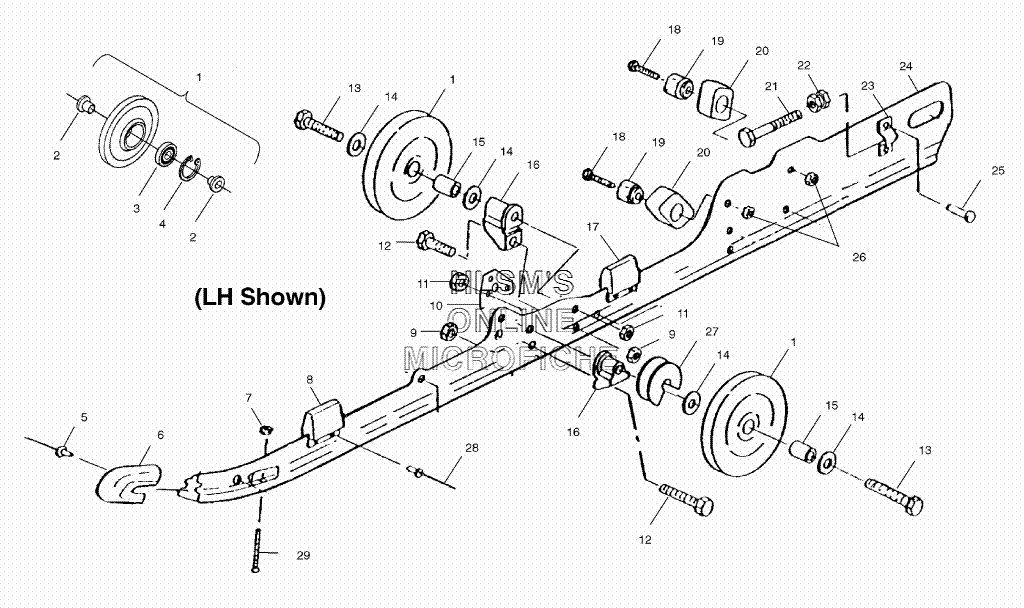

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска`
-
№АртикулНазвание
-
11594082-312 WHEEL ASSY. (BLUE) (INCL. 2-4)WHEEL ASSY. (BLUE) (INCL. 2-4)
-
25431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
33514305 BEARING, CHAINCASE (1 PER WHEEL)BEARING, CHAINCASE (1 PER WHEEL)
-
47718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
57621435 RIVETRIVET
-
65431421 COVER, RAIL TIPCOVER, RAIL TIP
-
77542122 NUT, LOCKNUT, LOCK
-
85810554 BUMPER, RAILBUMPER, RAIL
-
85222629 REINF., BUMPERREINF., BUMPER
-
97542439 NUT, NYLOCKNUT, NYLOCK
-
105211798 PLATE, RAIL SUPPORTPLATE, RAIL SUPPORT
-
117542525 NUT, NYLOCKNUT, NYLOCK
-
127512404 BOLTBOLT
-
137512538 BOLTBOLT
-
147555852 WASHER, FLATWASHER, FLAT
-
155333116 SPACER, WHEELSPACER, WHEEL
-
165630399 SPACERSPACER
-
175811097 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
175222629 REINFORCEMENT, BUMPERREINFORCEMENT, BUMPER
-
187515545 BOLTBOLT
-
195131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
205410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
217515455 BOLT, ADJUSTERBOLT, ADJUSTER
-
225020943 NUT, TENSIONER ADJUSTNUT, TENSIONER ADJUST
-
235130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
241540946 RAIL ASSY. (LEFT) (133'') (INCL. 5, 6, 8, 17, 23, 25, 28)RAIL ASSY. (LEFT) (133'') (INCL. 5, 6, 8, 17, 23, 25, 28)
-
241540947 RAIL ASSY. (RIGHT) (133'') (INCL. 5, 6, 8, 17, 23, 25, 28)RAIL ASSY. (RIGHT) (133'') (INCL. 5, 6, 8, 17, 23, 25, 28)
-
257621501 RIVETRIVET
-
267542411 NUT, LOCKNUT, LOCK
-
275431366 ROLLER, SPRINGROLLER, SPRING
-
287621476 RIVETRIVET
-
297515175 BOLTBOLT
