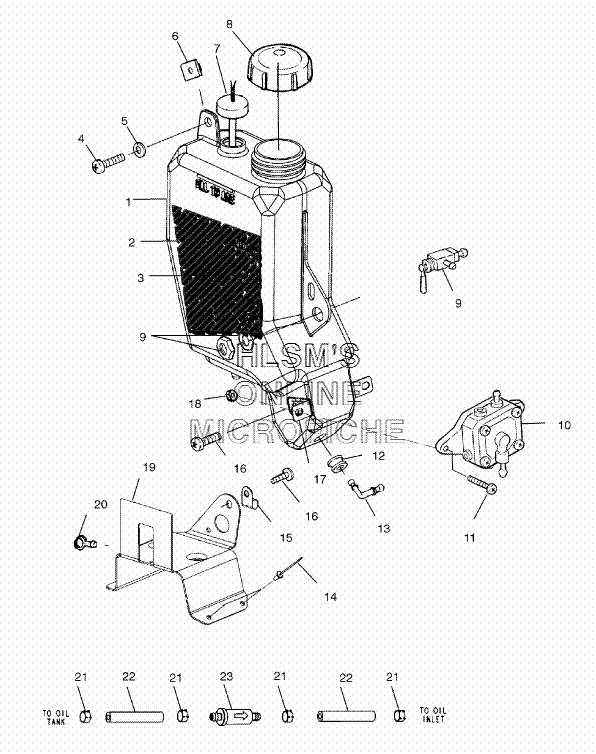

OIL TANK ASSEMBLY для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1253352 OIL TANK W/FOIL ASSY.
    OIL TANK W/FOIL ASSY.
  • 2
    5811934 FOIL, OIL TANK
    FOIL, OIL TANK
  • 3
    7077442 DECAL, FUEL SHUT-OFF
    DECAL, FUEL SHUT-OFF
  • 4
    7512276 BOLT
    BOLT
  • 5
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 6
    7670096 NUT
    NUT
  • 7
    4110134 SENSOR, OIL LEVEL
    SENSOR, OIL LEVEL
  • 8
    1240094 CAP-OIL, VENTED (CUSTOM COLOR)
    CAP-OIL, VENTED (CUSTOM COLOR)
  • 9
    7052248 VALVE, FUEL SHUT-OFF
    VALVE, FUEL SHUT-OFF
  • 10
    3085902 FUEL PUMP ASSY.
    FUEL PUMP ASSY.
  • 11
    7517264 SCREW
    SCREW
  • 12
    7052028 GROMMET, TANK FITTING
    GROMMET, TANK FITTING
  • 13
    7052208 FTTNG, PRESS-ON (90DEG)
    FTTNG, PRESS-ON (90DEG)
  • 14
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 15
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 16
    7517615 SCREW
    SCREW
  • 17
    5242680 BRACKET, FUEL PUMP MOUNT-Z
    BRACKET, FUEL PUMP MOUNT-Z
  • 18
    7542122 NUT, LOCK
    NUT, LOCK
  • 19
    5244339 BRACKET, OIL TANK W/BRIDGE
    BRACKET, OIL TANK W/BRIDGE
  • 20
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
  • 21
    7080307 CLAMP
    CLAMP
  • 22
    8450003-1525 FUEL LINE (1/4 ID 1525 CM.)
    FUEL LINE (1/4 ID 1525 CM.)
  • 23
    2530009 FILTER, IN-LINE
    FILTER, IN-LINE
