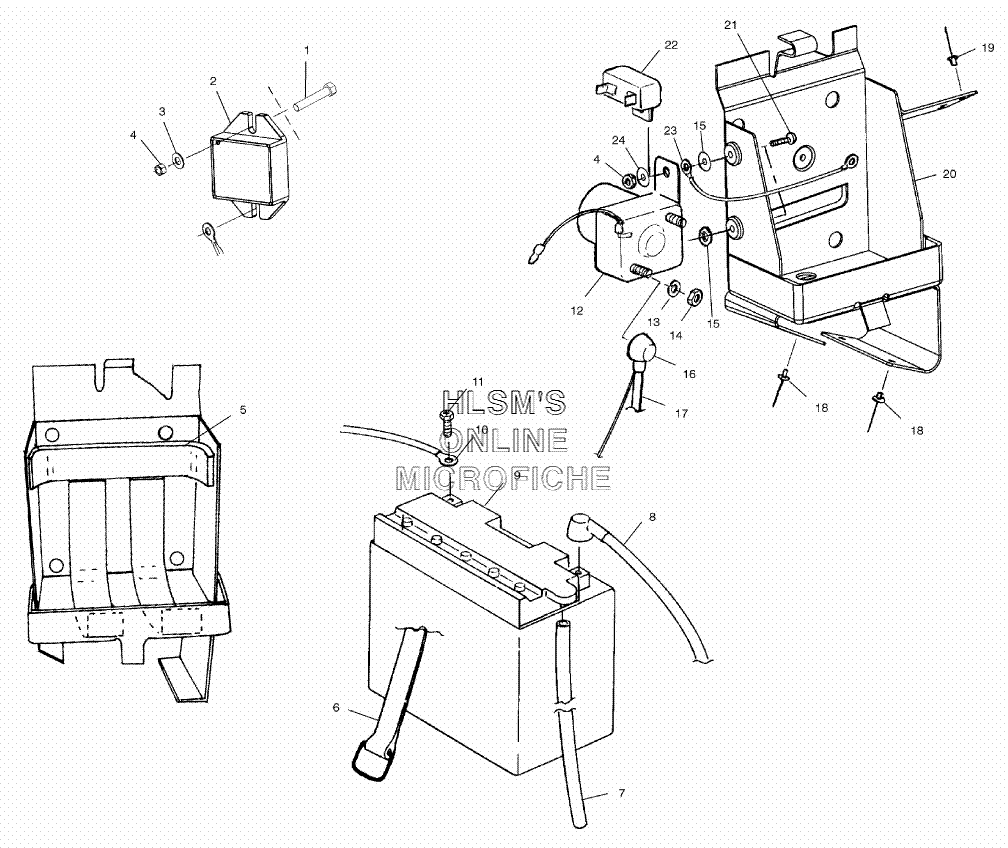

BATTERY BOX для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17517263 SCREWSCREW
-
24010355 REGULATOR (14.3V)REGULATOR (14.3V)
-
37555746 BURR, RIVETBURR, RIVET
-
47541925 NUTNUT
-
55810290 PAD, BATTERYPAD, BATTERY
-
62450020 STRAP ASSY., BATTERY HOLDSTRAP ASSY., BATTERY HOLD
-
75433681 TUBE, BATTERY VENT (400 MM)TUBE, BATTERY VENT (400 MM)
-
82460393 CABLE ASSY., SOLENOIDCABLE ASSY., SOLENOID
-
94140006 BATTERYBATTERY
-
104010114 CABLE, BATTERY (11'') (BLACK)CABLE, BATTERY (11'') (BLACK)
-
112200361 BOLT, BATTERY KIT (SHORT)BOLT, BATTERY KIT (SHORT)
-
124010930 SWITCH, MAGNETICSSWITCH, MAGNETICS
-
133080077 WASHER, SPRINGWASHER, SPRING
-
143082939 NUTNUT
-
157571602 WASHERWASHER
-
165410346 INSULATION, CABLE SOL.INSULATION, CABLE SOL.
-
174010190 CABLE (RED) (25'')CABLE (RED) (25'')
-
187621467 RIVET, BLINDRIVET, BLIND
-
197621418 POP RIVETPOP RIVET
-
201012799-067 BATTERY BOX (BLACK)BATTERY BOX (BLACK)
-
217512027 SCREWSCREW
-
222434008 CIRCUIT BREAKERCIRCUIT BREAKER
-
234010108 WIRE, JUMPER SOL/BATTERY (8.5'')WIRE, JUMPER SOL/BATTERY (8.5'')
-
247558201 WASHER, FLATWASHER, FLAT
