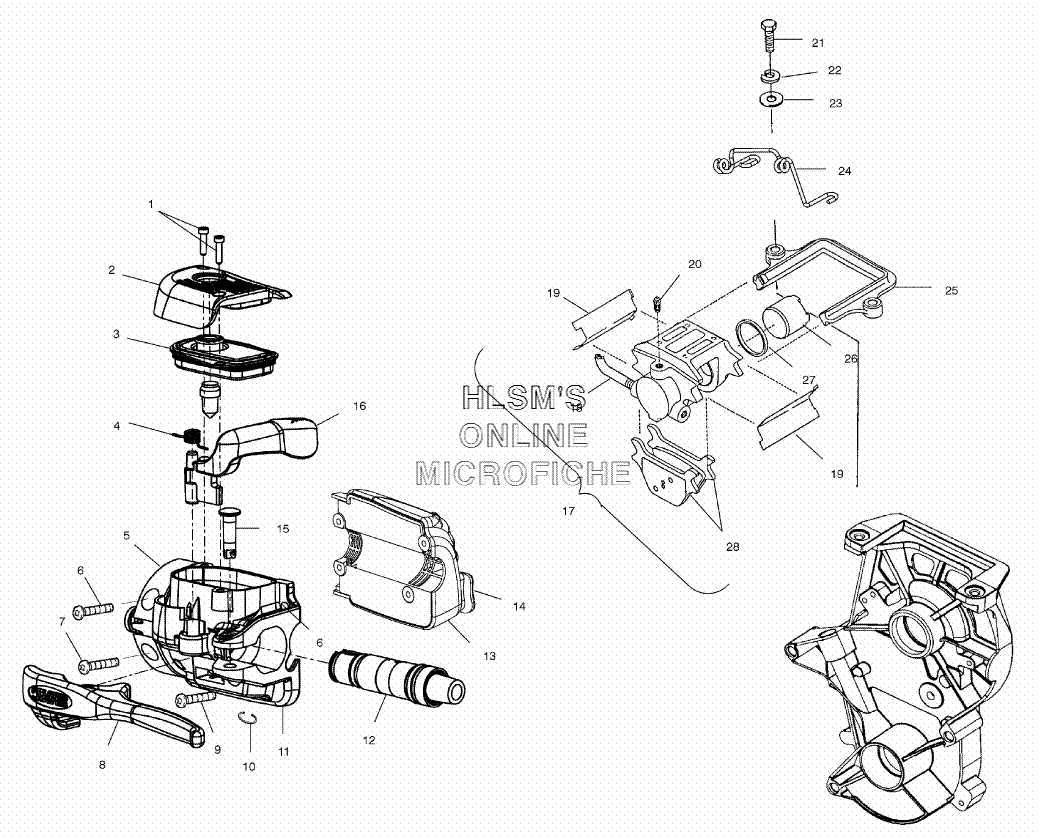

BRAKE ASSEMBLY для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSY. (INCL. 1, 3)
    COVER ASSY. (INCL. 1, 3)
  • 4
    2201250 PARKING LEVER SPRING KIT
    PARKING LEVER SPRING KIT
  • 5
    2010209 MASTER CYLINDER ASSY. (INCL. 2, 4, 8, 11, 12, 15)
    MASTER CYLINDER ASSY. (INCL. 2, 4, 8, 11, 12, 15)
  • 6
    7517441 SCREW
    SCREW
  • 7
    7512078 SCREW
    SCREW
  • 8
    2201943 LEVER KIT, 3 NOTCH/PIN/RING
    LEVER KIT, 3 NOTCH/PIN/RING
  • 9
    7517566 SCREW
    SCREW
  • 10
    2201945 SNAP RING KIT
    SNAP RING KIT
  • 11
    2201948 MASTER CYLINDER ASSY.
    MASTER CYLINDER ASSY.
  • 11
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 12
    2201944 CARTRIDGE SUB ASSY. KIT (5/8'')
    CARTRIDGE SUB ASSY. KIT (5/8'')
  • 13
    2010167 CONTROL ASSY., BASIC (LEFT)
    CONTROL ASSY., BASIC (LEFT)
  • 14
    5433291 BUTTON SWITCH (HI/LO)
    BUTTON SWITCH (HI/LO)
  • 15
    2201946 PIVOT PIN, ALUMINUM W/SNAP RING
    PIVOT PIN, ALUMINUM W/SNAP RING
  • 16
    2201251 PARKING LEVER AND SPRING KIT (INCL. 4)
    PARKING LEVER AND SPRING KIT (INCL. 4)
  • 17
    1910350 BRAKE CALIPER, HYBRID AIR (INCL. 26, 27, 28)
    BRAKE CALIPER, HYBRID AIR (INCL. 26, 27, 28)
  • 18
    1910313 LINE, BRAKE
    LINE, BRAKE
  • 19
    2200467 CLIP SPRING KIT
    CLIP SPRING KIT
  • 20
    1930735 INLET KIT
    INLET KIT
  • 21
    7515521 BOLT
    BOLT
  • 22
    7552603 WASHER
    WASHER
  • 23
    7555806 WASHER
    WASHER
  • 24
    5244413 GUIDE, ROPE
    GUIDE, ROPE
  • 25
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 26
    1930734 PISTON SEAL KIT (INCL. 27)
    PISTON SEAL KIT (INCL. 27)
  • 27
    2200466 SEAL
    SEAL
  • 28
    2201429 BRAKE KIT, PAD (SMALL) (INCL. 19)
    BRAKE KIT, PAD (SMALL) (INCL. 19)
  • 28
    2201430 BRAKE KIT, PAD (LARGE) (INCL. 19)
    BRAKE KIT, PAD (LARGE) (INCL. 19)
