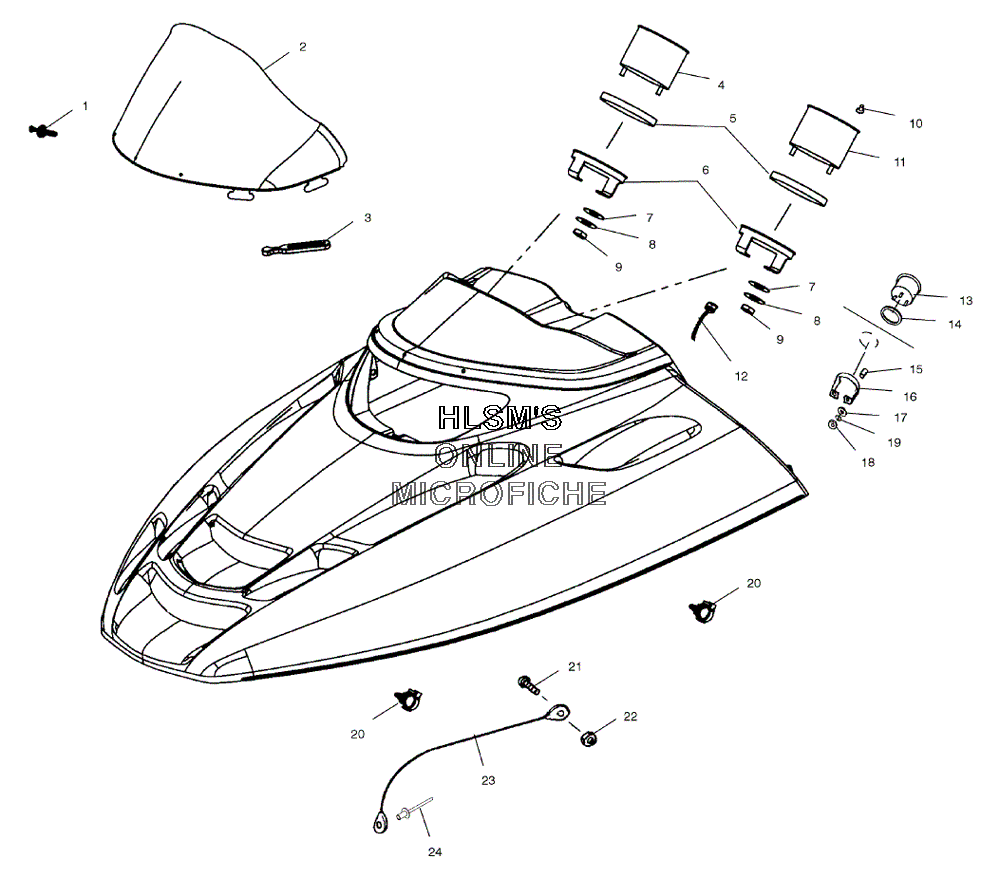

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
25433517 WINDSHIELD,15"FLR SMK EDGEWINDSHIELD,15"FLR SMK EDGE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACH, 6 P, W/FUEL LT (WHITE)TACH, 6 P, W/FUEL LT (WHITE)
-
44030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
53280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
63280210 BRACKET, TACH/SPEEDO, 5"BRACKET, TACH/SPEEDO, 5"
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER, THD. (LEFT)KNOB, TRIP ODOMETER, THD. (LEFT)
-
113280348 SPEEDO, 5" 120MPH WH W/OANGSPEEDO, 5" 120MPH WH W/OANG
-
114030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
123280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
133280334 GUAGE, FUEL 2" BACKLITGUAGE, FUEL 2" BACKLIT
-
134060139 FUSEFUSE
-
143280230 CUSHION, FUELGAUGE (2") RUBBERCUSHION, FUELGAUGE (2") RUBBER
-
153280228 SPACER, BRACKET (FUELGAUGE)SPACER, BRACKET (FUELGAUGE)
-
163280229 BRACKET, FUELGAUGE (2")BRACKET, FUELGAUGE (2")
-
173280231 WASHERWASHER
-
183280232 NUTNUT
-
193280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
204010589 CLIP, PLASTIC, DART NYLONCLIP, PLASTIC, DART NYLON
-
217512018 SCREWSCREW
-
227541925 NUTNUT
-
237080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
247661637 RIVET, INTERLOCK ,ZRIVET, INTERLOCK ,Z
