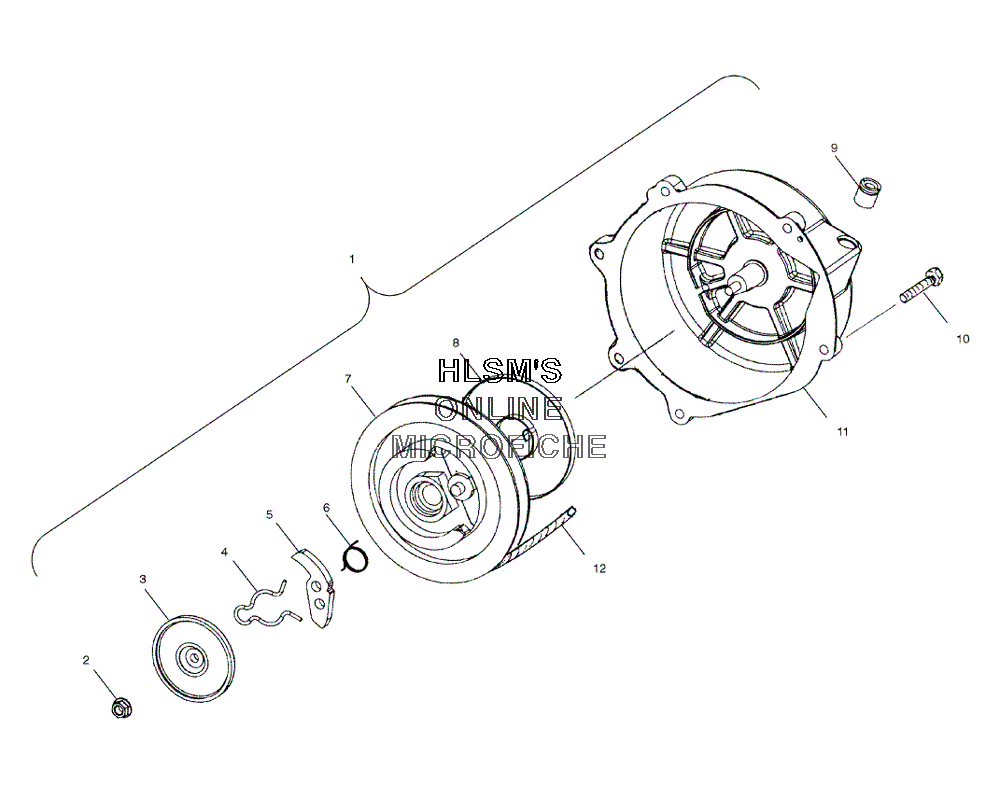

STARTER - RECOIL ASSEMBLY для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска
-
№АртикулНазвание
-
11201815 RECOIL ASSY. (INCL. 2-8,11,12)RECOIL ASSY. (INCL. 2-8,11,12)
-
23040163 SHOCK-REAR TRACKSHOCK-REAR TRACK
-
33040164 PLATE, FRICTIONPLATE, FRICTION
-
43040167 SPRING, FRICTIONSPRING, FRICTION
-
53040165 RATCHETRATCHET
-
63040166 SPRING, RETURNSPRING, RETURN
-
73040168 REELREEL
-
83040170 SPRING, SPIRALSPRING, SPIRAL
-
93040171 GUIDE-ROPEGUIDE-ROPE
-
107516827 SCREWSCREW
-
115630645 RECOIL ASM.RECOIL ASM.
-
123040169 ROPE,STARTERROPE,STARTER
