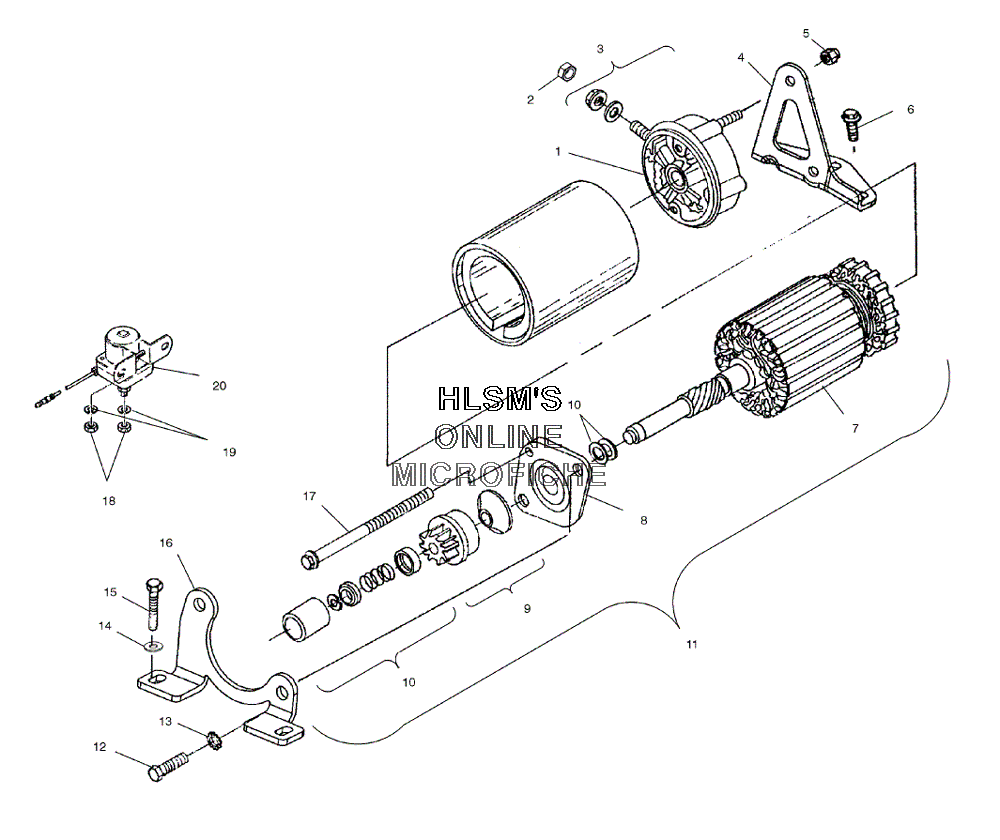

STARTING MOTOR для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2200759 BRUSH AND SPRING KIT
    BRUSH AND SPRING KIT
  • 2
    7542103 NUT, LOCK
    NUT, LOCK
  • 3
    2200758 COMMUTATOR CAP ASSY. KIT (INCL.1)
    COMMUTATOR CAP ASSY. KIT (INCL.1)
  • 4
    5244250 BRACKET, STARTER (REAR)
    BRACKET, STARTER (REAR)
  • 5
    7542153 NUT
    NUT
  • 6
    7516823 SCREW
    SCREW
  • 7
    2200756 ARMATURE ASSY. KIT
    ARMATURE ASSY. KIT
  • 8
    2200757 DRIVECAP ASSY. KIT
    DRIVECAP ASSY. KIT
  • 9
    2200754 DRIVE ASSY. KIT
    DRIVE ASSY. KIT
  • 10
    2200755 DRIVE HDWE KIT
    DRIVE HDWE KIT
  • 11
    4170006 MOTOR, STARTER (DOMESTIC)
    MOTOR, STARTER (DOMESTIC)
  • 12
    7512492 SCREW
    SCREW
  • 13
    7552603 WASHER
    WASHER
  • 14
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 15
    7517322 SCREW
    SCREW
  • 16
    5245467 BRACKET, STARTER, EDGE, S44
    BRACKET, STARTER, EDGE, S44
  • 17
    2200753 SCREW KIT
    SCREW KIT
  • 18
    3082939 NUT
    NUT
  • 19
    3080077 WASHER SPRING
    WASHER SPRING
  • 20
    3083211 SWITCH, MAGNETIC (INCL. 15,16)
    SWITCH, MAGNETIC (INCL. 15,16)
