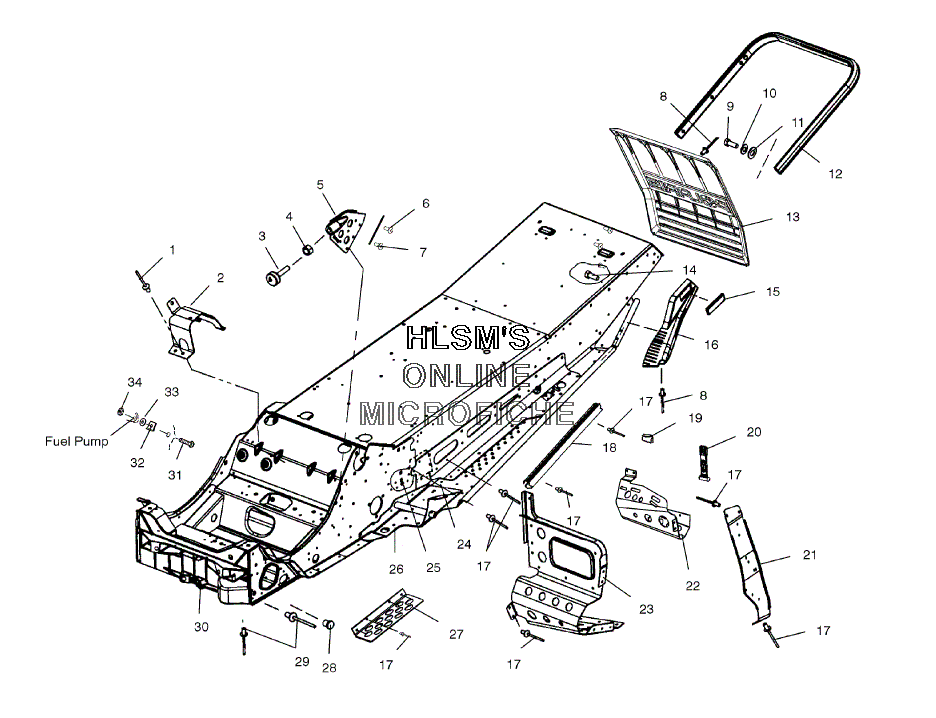

FRAME - CHASSIS для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25245003 BRACKET, JACKSHAFT, SHIELDBRACKET, JACKSHAFT, SHIELD
-
33021104 STOP, TORQUE COURSE 3/8-16STOP, TORQUE COURSE 3/8-16
-
47542404 NUTNUT
-
51013379 WELD, TOQUE STOP S44WELD, TOQUE STOP S44
-
67517632 SCREWSCREW
-
77517854 SCREWSCREW
-
87621472 RIVETRIVET
-
97512240 BOLTBOLT
-
107552801 LOCK WASHERLOCK WASHER
-
117558301 WASHERWASHER
-
122632165-309 BUMPER (REAR)BUMPER (REAR)
-
135433961-1118 FLAP-SHORT,EDGE (BLUE W/WHITE)FLAP-SHORT,EDGE (BLUE W/WHITE)
-
147517441 SCREWSCREW
-
152670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
162632443-070 SNOWSKIRT/REFL ASSY. (LEFT/BLACK)SNOWSKIRT/REFL ASSY. (LEFT/BLACK)
-
162632444-070 SNOWSKIRT/REFL ASSY. (RIGHT/BLACK)SNOWSKIRT/REFL ASSY. (RIGHT/BLACK)
-
177661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
185245118 BRACE, TUNNEL ROLLBRACE, TUNNEL ROLL
-
195521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
205433150 STRAP, RUBBERSTRAP, RUBBER
-
215242741 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
215242742 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
225245457 MOUNT, CONSOLE, TOE CLIP (LEFT)MOUNT, CONSOLE, TOE CLIP (LEFT)
-
225245458 MOUNT-CONSOLE,TOE CLIP (RIGHT)MOUNT-CONSOLE,TOE CLIP (RIGHT)
-
235245288 FOOTREST (LEFT) .080FOOTREST (LEFT) .080
-
235242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
245244997-067 BRACE, TUNNEL (LEFT/BLACK/LOWER)BRACE, TUNNEL (LEFT/BLACK/LOWER)
-
245244998-067 BRACE, TUNNEL (RIGHT/BLACK/LOWER)BRACE, TUNNEL (RIGHT/BLACK/LOWER)
-
255244999-067 PAD, SUSPENSION (LEFT/BLACK/FRONT)PAD, SUSPENSION (LEFT/BLACK/FRONT)
-
255245001-067 PAD, SUSPENSION (RIGHT/BLACK/FRONT)PAD, SUSPENSION (RIGHT/BLACK/FRONT)
-
262202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
262202060 MOUNT,TRAILING ARM KIT (RIGHT)MOUNT,TRAILING ARM KIT (RIGHT)
-
275245066 GUARD, BELT, EDGEGUARD, BELT, EDGE
-
287080416 PLUG, HOLEPLUG, HOLE
-
297661639 RIVETRIVET
-
305132292 BULKHEAD, MACH (FRONT)BULKHEAD, MACH (FRONT)
-
317512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
327670021 SPEED NUTSPEED NUT
-
337555932 WASHER, NYLONWASHER, NYLON
-
347542122 NUT, LOCKNUT, LOCK
-
341013687-309 CHASSIS ASSY., SVC, M-10, NATURALCHASSIS ASSY., SVC, M-10, NATURAL
