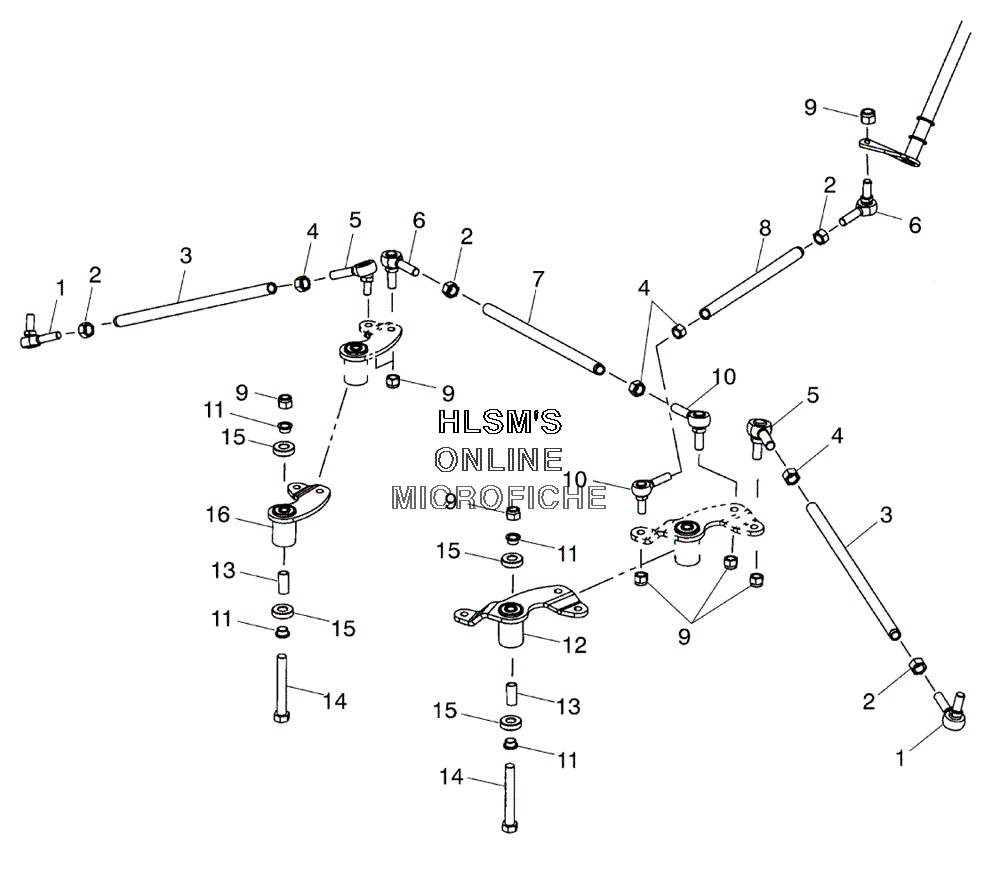

STEERING ASSEMBLY для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска

№

Артикул

Название
1

7061057 ROD, END-3/8,PL,75Ш,1.00 (RIGHT)

ROD, END-3/8,PL,75Ш,1.00 (RIGHT)

9 780 ₽
2

7542401 NUT HEX

NUT HEX

110 ₽
3

5333949-312 ROD-TIE (M BLUE)

ROD-TIE (M BLUE)

6 660 ₽
4

7542424 NUT

NUT

150 ₽
5

7061055 ROD, END-3/8 PL, 750 STUD (LEFT)

ROD, END-3/8 PL, 750 STUD (LEFT)

9 780 ₽
6

7061076 ROD END-3/8 HI-ANGLE PR (RIGHT0

ROD END-3/8 HI-ANGLE PR (RIGHT0

9 780 ₽
7

5333772 STEERING ROD RACK 11.50

STEERING ROD RACK 11.50

6 660 ₽
8

5333773-067 ROD, DRAGLINK, 12.50, STEEL (BLACK)

ROD, DRAGLINK, 12.50, STEEL (BLACK)

4 790 ₽
9

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
10

7061075 ROD END-3/8 HI-ANGLE PR (LEFT)

ROD END-3/8 HI-ANGLE PR (LEFT)

9 780 ₽
11

5132106 BUSHING, REDUCER, 12MM TO .385

BUSHING, REDUCER, 12MM TO .385

1 730 ₽
12

1820957 ARM, PITMAN ARM, EDGE (INCL. 11,13,15)

ARM, PITMAN ARM, EDGE (INCL. 11,13,15)

33 280 ₽
13

5132495 SPACER, TUBE, PITMAN/IDLER ARMS

SPACER, TUBE, PITMAN/IDLER ARMS

880 ₽
14

7512435 BOLT

BOLT

250 ₽
15

3514320 BEARING, BALL, 600ILLU

BEARING, BALL, 600ILLU

3 750 ₽
16

1820959 IDLER ARM ASSY., EDGE (INCL. 11,13,15)

IDLER ARM ASSY., EDGE (INCL. 11,13,15)

30 160 ₽
