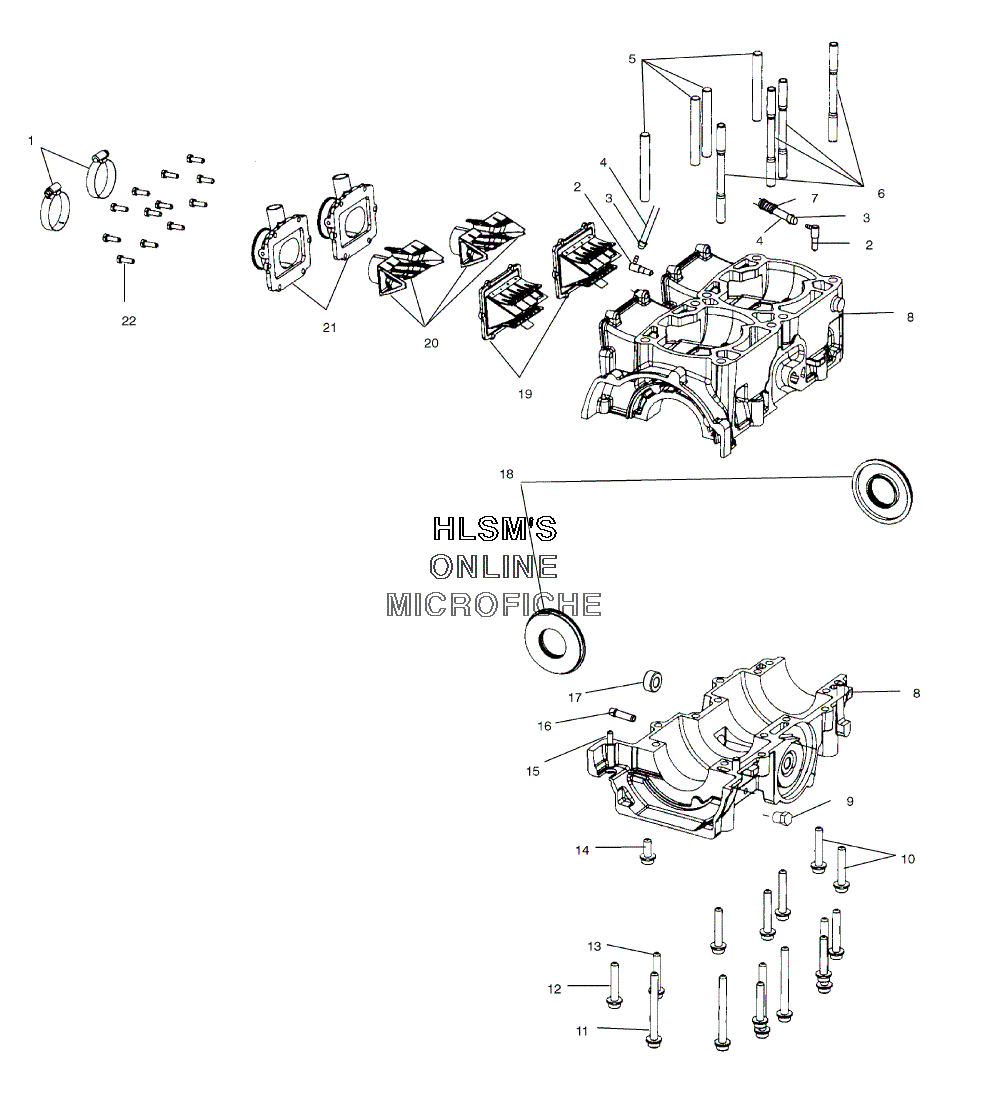

CRANKCASE ASSEMBLY для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE, SSCLAMP, HOSE, SS
-
27051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
37080603 CLAMPCLAMP
-
48450061-600 FUELLINE 3MMX7MMFUELLINE 3MMX7MM
-
55132196 STUD, CYL 81MMSTUD, CYL 81MM
-
65132197 STUD, CYL 118MMSTUD, CYL 118MM
-
78360056-25 TUBING, CONVOLUTED, 25CMTUBING, CONVOLUTED, 25CM
-
82201931 CRANKCASE 1202176 KIT (INCL. 5,6,9-15)CRANKCASE 1202176 KIT (INCL. 5,6,9-15)
-
97051529 PLUGPLUG
-
107517785 BOLT, M8X1.25X55BOLT, M8X1.25X55
-
117517784 BOLT, M8X1.25X80BOLT, M8X1.25X80
-
127516825 SCREWSCREW
-
137517786 BOLT, M8X1.25X45BOLT, M8X1.25X45
-
147517577 SCREWSCREW
-
157663001 PIN, DOWELPIN, DOWEL
-
167052145 FITTINGFITTING
-
175010390 BRG, PUMP SHAFTBRG, PUMP SHAFT
-
185411394 SEAL, FLANGEDSEAL, FLANGED
-
191201825 VALVE, REED, ASSY.VALVE, REED, ASSY.
-
205432852 STUFFER, REED, 75.5MM (38MM.CARB)STUFFER, REED, 75.5MM (38MM.CARB)
-
211253414 ADAPTER, CARB TM38/RACK PROADAPTER, CARB TM38/RACK PRO
-
227516822 SCREWSCREW
