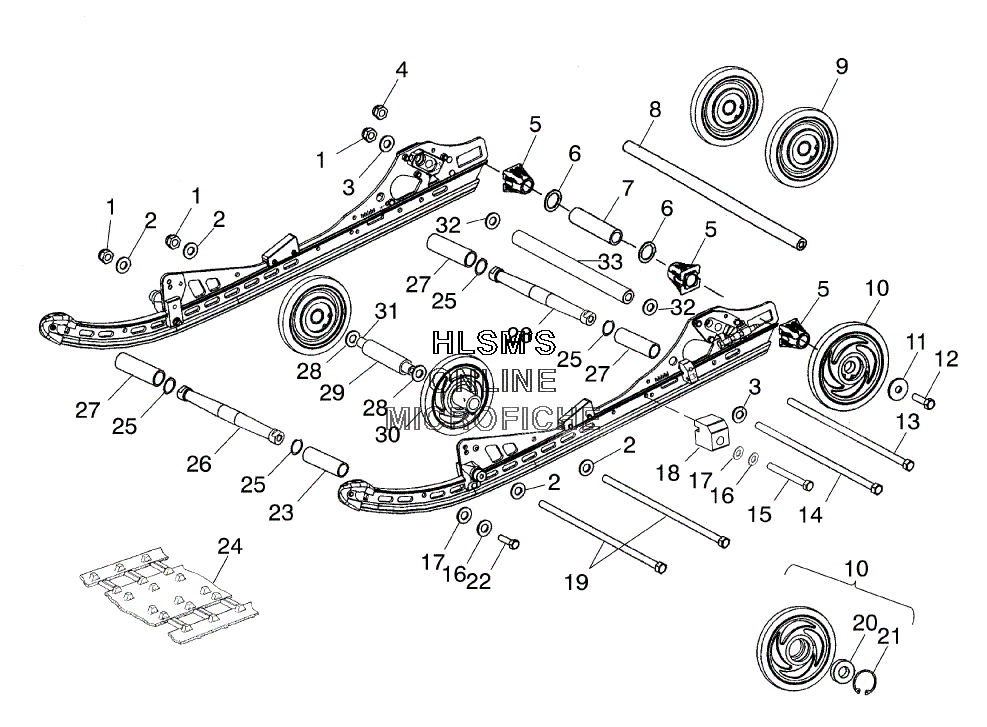

SUSPENSION - REAR TRACK для Polaris 600 CLASSIC (S02ND6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555797 WASHER
    WASHER
  • 3
    7555806 WASHER
    WASHER
  • 4
    7547064 NUT
    NUT
  • 5
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 6
    7555918 BUSHING
    BUSHING
  • 7
    5333283 SPACER, IDLER (CENTER)
    SPACER, IDLER (CENTER)
  • 8
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 9
    1590307 IDLER WHEEL ASSY. 6.0 OD PLAIN
    IDLER WHEEL ASSY. 6.0 OD PLAIN
  • 10
    1590305-312 IDLER WHEEL ASSY., SCRLLD, 6.0,BL
    IDLER WHEEL ASSY., SCRLLD, 6.0,BL
  • 11
    7556130 WASHER
    WASHER
  • 12
    7517731 BOLT
    BOLT
  • 13
    7517896 SCREW
    SCREW
  • 14
    7517821 SCREW
    SCREW
  • 15
    7517856 SCREW
    SCREW
  • 16
    7552603 WASHER
    WASHER
  • 17
    7556042 WASHER, FLAT
    WASHER, FLAT
  • 18
    5132583 BLOCK-SHOCK PIVOT ADJUST
    BLOCK-SHOCK PIVOT ADJUST
  • 19
    7517353 SCREW
    SCREW
  • 20
    3514012 BEARING
    BEARING
  • 21
    7710444 RING,RETAINING
    RING,RETAINING
  • 22
    7517857 SCREW
    SCREW
  • 23
    5132586 LIMITER-STRAP ATTACH (LIMITER, STRAP) (LOWER)
    LIMITER-STRAP ATTACH (LIMITER, STRAP) (LOWER)
  • 24
    5411994 TRACK-121X1.00X1, SHOCKWAVE
    TRACK-121X1.00X1, SHOCKWAVE
  • 25
    5411965 O RING-.875ID X .125 DIA
    O RING-.875ID X .125 DIA
  • 26
    5132793 SHAFT, TAPERED
    SHAFT, TAPERED
  • 27
    5333902 SPACER, SHOCK CENTERING, M-10
    SPACER, SHOCK CENTERING, M-10
  • 28
    7556301 MACHINERY BUSHING
    MACHINERY BUSHING
  • 29
    5330394 SPACER, BOGIE INNER
    SPACER, BOGIE INNER
  • 30
    1541530-312 WHEEL ASSY., 5.35, .75IDW/IN, SCRBL
    WHEEL ASSY., 5.35, .75IDW/IN, SCRBL
  • 31
    5132490 SHAFT (.390X.750X.8665)
    SHAFT (.390X.750X.8665)
  • 32
    7558402 WASHER STEEL
    WASHER STEEL
  • 33
    5333477-067 TUBE (.334X.50X8.515,1020 (BLACK)
    TUBE (.334X.50X8.515,1020 (BLACK)
