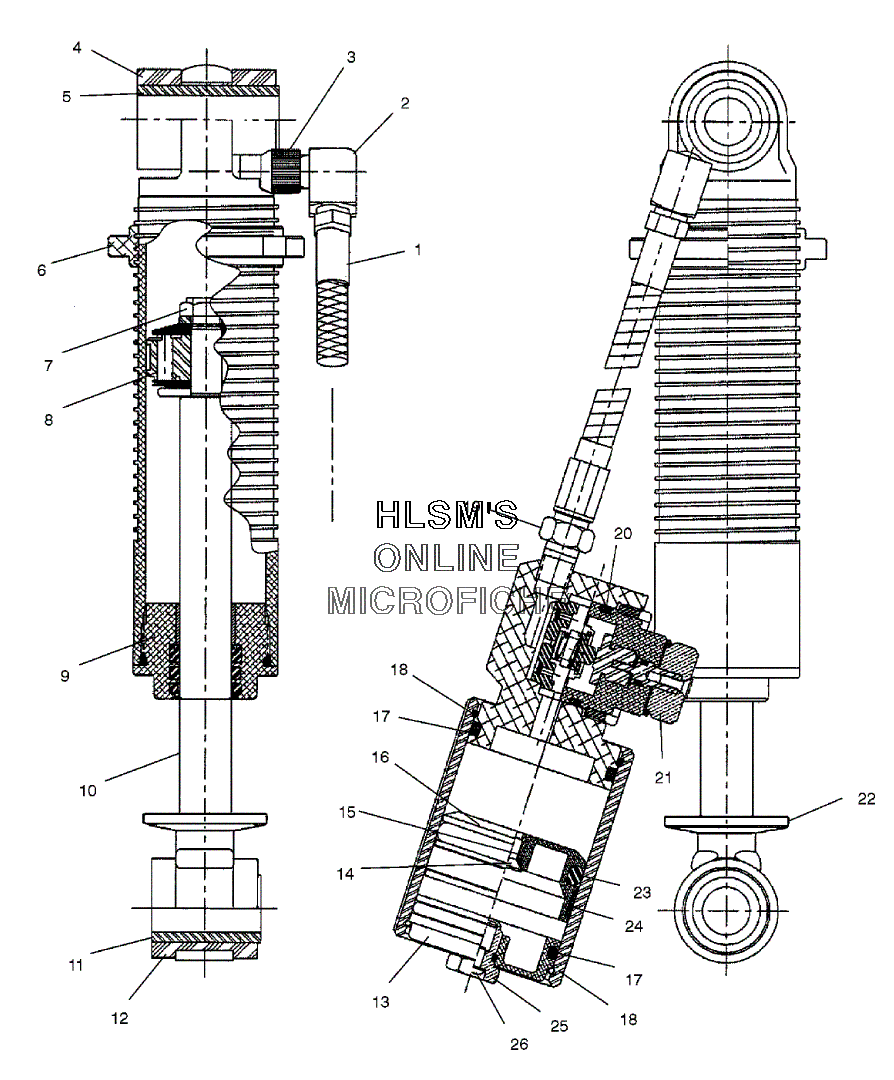

SUSPENSION - RYDE FX - FRONT TRACK для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска`
-
№АртикулНазвание
-
1A7041973 SHOCK, FRONT TRACK, ARVINSHOCK, FRONT TRACK, ARVIN
-
11700061 BRAIDED HOSE (24'')BRAIDED HOSE (24'')
-
21700062 90Ш ELBOW90Ш ELBOW
-
31700035 ADAPTERADAPTER
-
41700074 BUSHINGBUSHING
-
51700040 SLEEVE, (.57''IDX.80''ODX1.68)SLEEVE, (.57''IDX.80''ODX1.68)
-
61700030 SPRING, RET NUTSPRING, RET NUT
-
71700057 NUTNUT
-
81700103 BANDED PISTON (.070'' ORIFCE)BANDED PISTON (.070'' ORIFCE)
-
81700031 PISTON WEAR BANDPISTON WEAR BAND
-
81700077 TOP, OUT WASHERTOP, OUT WASHER
-
81700078 BACK, UP WASHERBACK, UP WASHER
-
91700008 CYL HEAD ASSY. (5/8'' ROD)CYL HEAD ASSY. (5/8'' ROD)
-
91700051 CYL, HEAD O-RINGCYL, HEAD O-RING
-
91700019 ROD SCRAPERROD SCRAPER
-
91700046 CYL, HEAD O-RINGCYL, HEAD O-RING
-
91700020 ROD SEALROD SEAL
-
101700015 SHAFT (5/8''DIAX6.60''L)SHAFT (5/8''DIAX6.60''L)
-
111700041 SLEEVE, (.57''IDX.80''ODX1.20)SLEEVE, (.57''IDX.80''ODX1.20)
-
121700075 BUSHINGBUSHING
-
131700058 ENDCAPENDCAP
-
141700054 IFP, BLEED SCREWIFP, BLEED SCREW
-
151700016 BLEED SCREW O-RINGBLEED SCREW O-RING
-
161700017 IFPIFP
-
171700044 ENDCAP, O-RINGENDCAP, O-RING
-
181700059 CIRCLIPCIRCLIP
-
191700065 MALE ADAPTER 37ШMALE ADAPTER 37Ш
-
201700188 O-RINGO-RING
-
211700013 CLICKER ASSY.CLICKER ASSY.
-
221700004 UPPER MOUNTUPPER MOUNT
-
231700043 IFP, O-RINGIFP, O-RING
-
241700018 IFP WEAR BAND (RES)IFP WEAR BAND (RES)
-
251700053 PRESS, VALVE ASSY.PRESS, VALVE ASSY.
-
251700045 PRESS, VALVE O-RINGPRESS, VALVE O-RING
-
261700055 VALVE SCREWVALVE SCREW
